REPLACEMENT AND ADJUSTMENT
SM 5 B835
Cover
Interposer
Tray
B835

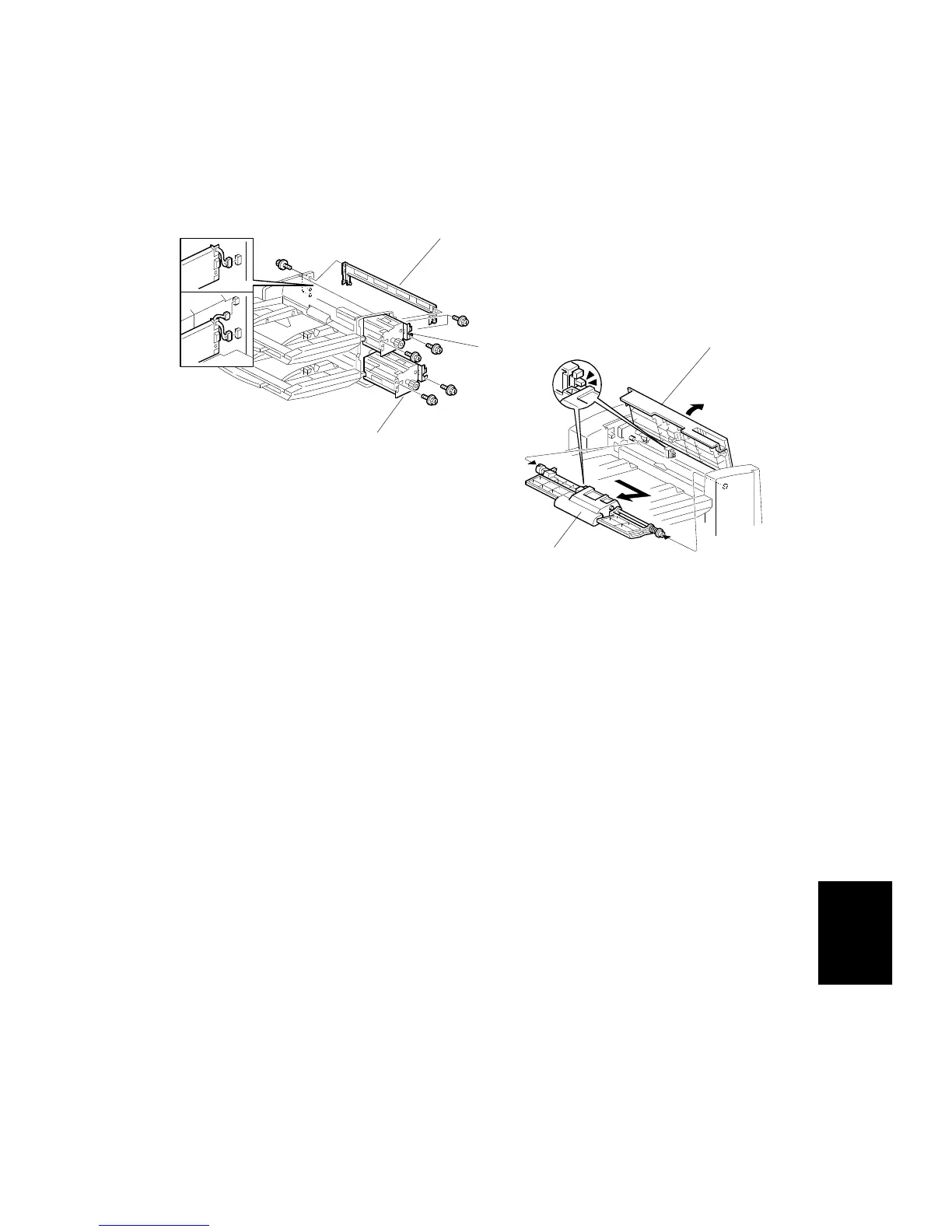

1.3 FEED UNITS
1st Feed Unit
Remove:
• Top cover (
1.1)
• Inner cover with front door (
1.1)
• Tray unit rear cover (
1.1)
[A] Stay (
x5)
[B] Open the 1st tray cover and hold it open
[C] 1st feed belt unit
[D] 1st feed unit (
x,
x )
2nd Feed Unit
• Open the vertical feed cover (
1.1)
• Remove inner cover with tray unit front door (
1.1)
• 2nd feed belt unit (same as [C])
[E] 2nd feed unit ( x2, x2)
B835R114.WMF
B835R101.WMF
[A]
[D]
[E]
[B]
[C]
1st Tray
2nd Tray
To Next Page
