Ricoh D014 - Paper Feed Motors

Paper Handling
D350 20 SM
2.2.2 PAPER FEED MOTORS

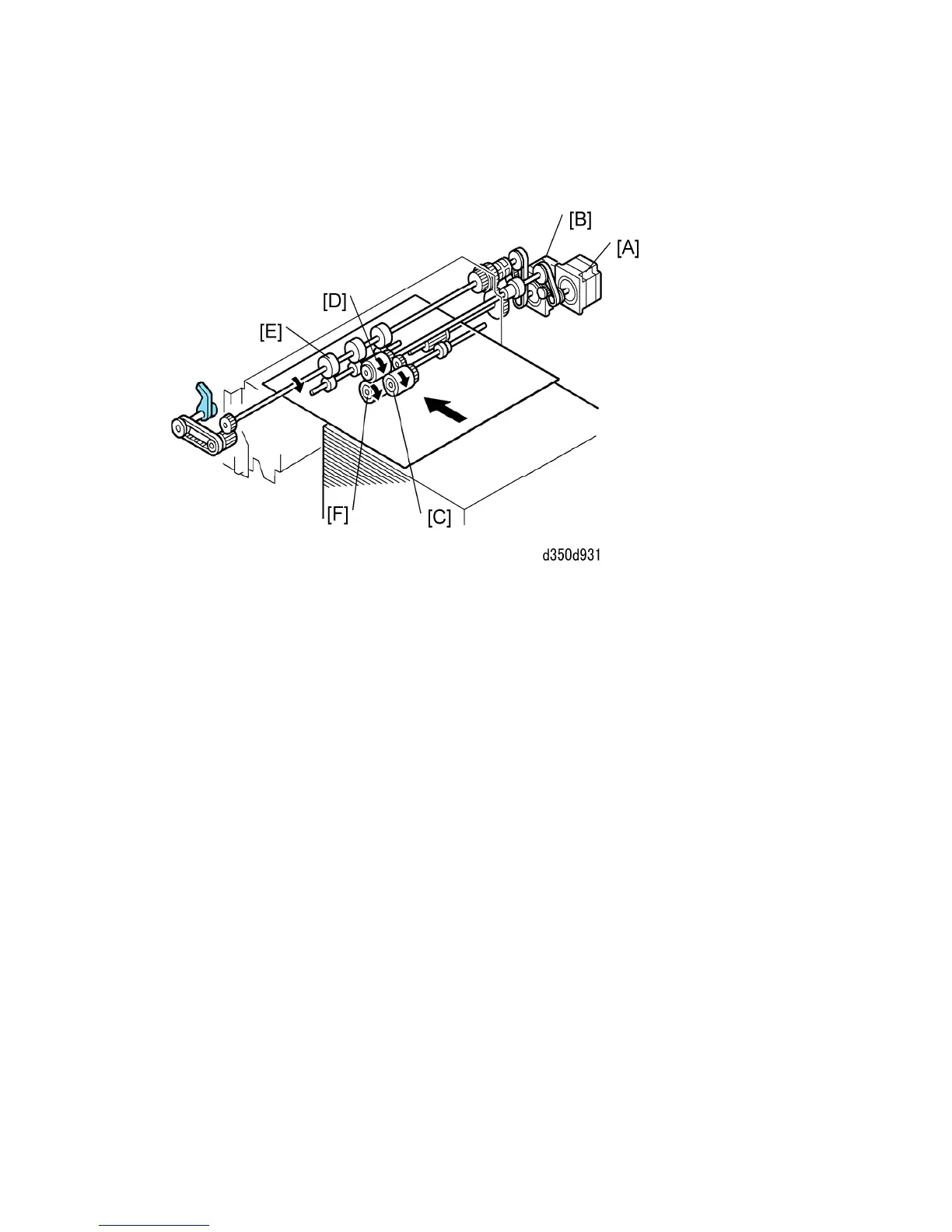

Two stepper motors control paper feed: Paper feed motor [A] and the grip motor [B].
The paper feed motor [A] drives the pick-up roller [C] and the paper feed roller [D].
The grip motor [B] drives the grip roller [E] that feeds the paper out of the tray, and also
drives the separation roller [F].
