1.3 MAIN MOTOR AND CONTROL BOARD
Rear cover ( 1.1)
[A]: Control board ( x 3,  x 17)
[B]: Main motor bracket (main motor  x 1,  x 2)
[C]: Timing belt
[D]: Main motor ( x 1)

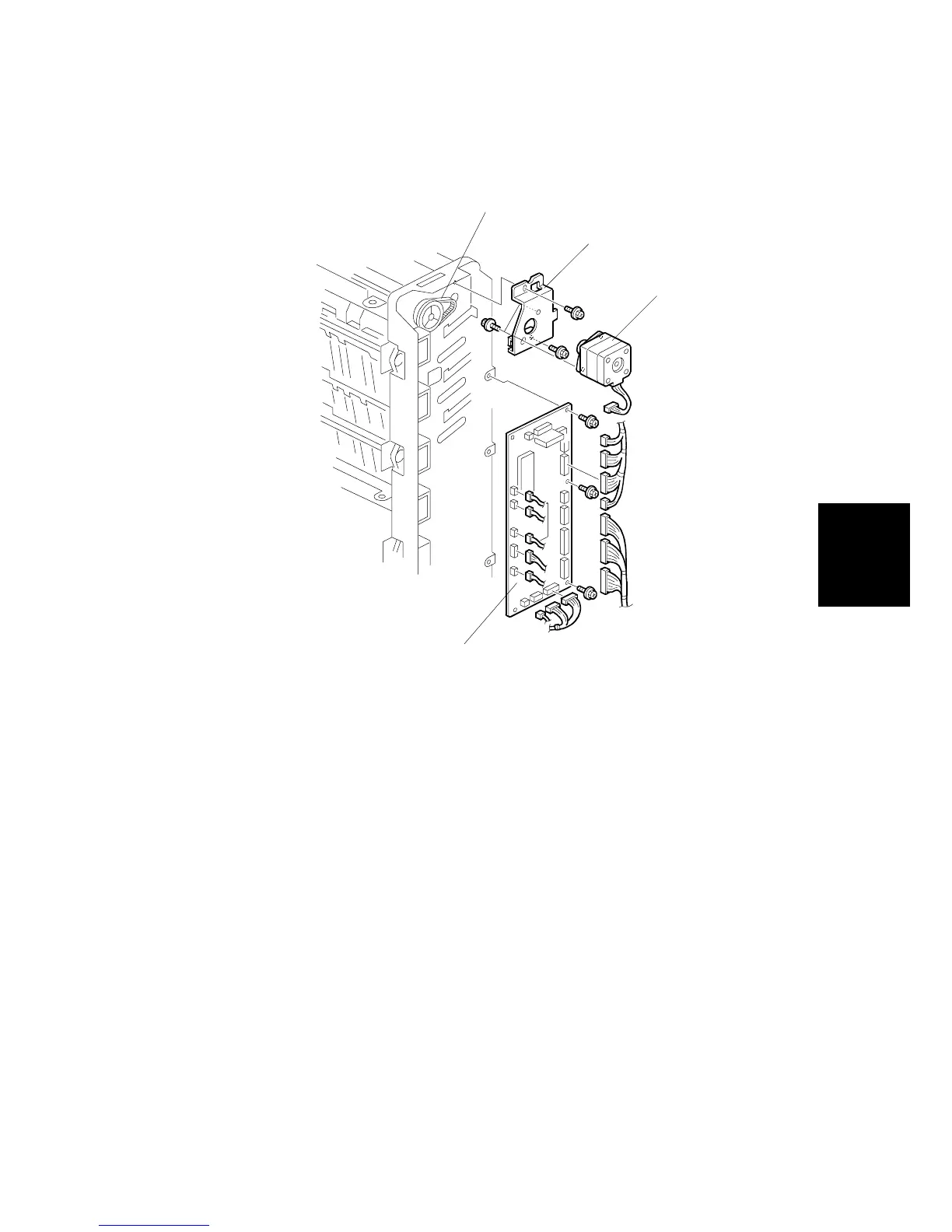

B471R002.WMF
[A]
[B]
[C]
[D]
