Ricoh D014 - Jogger Top Fence Motor

REPLACEMENT AND ADJUSTMENT
SM 25 B830
Finisher
B830
1.6.4 JOGGER TOP FENCE MOTOR
1. Open the front door and pull out the stapler tray unit. (

1.1.6)
2. Remove the jogger unit cover (

x2)

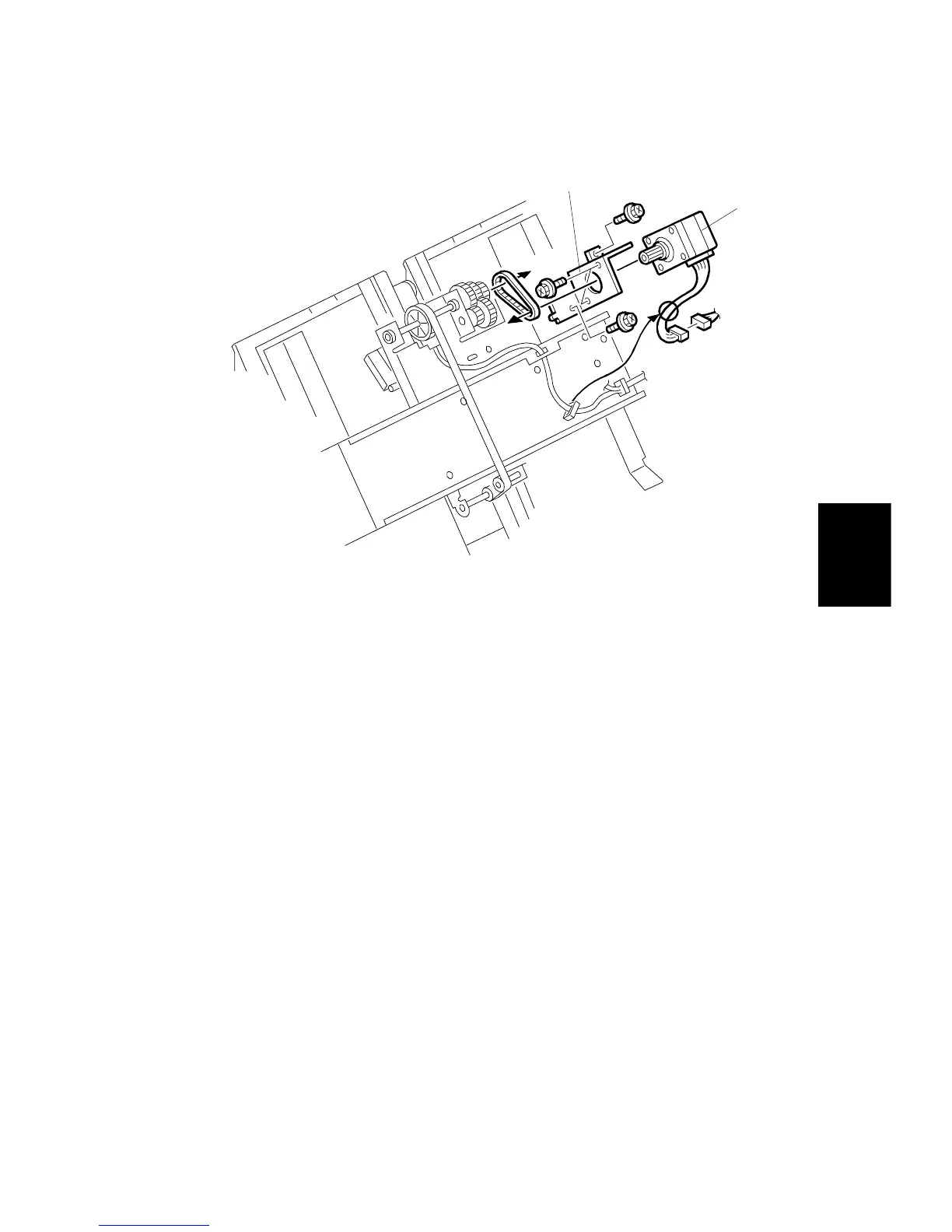

3. Remove the motor bracket [A] (

x2, timing belt x1)
4. Remove the jogger top fence motor [B] (

x2

x1

x1)
B830 ാ 102.WMF
[A]
[B]
