DETAILS
SM 45 B830
Finisher
B830
3.4 STAPLING

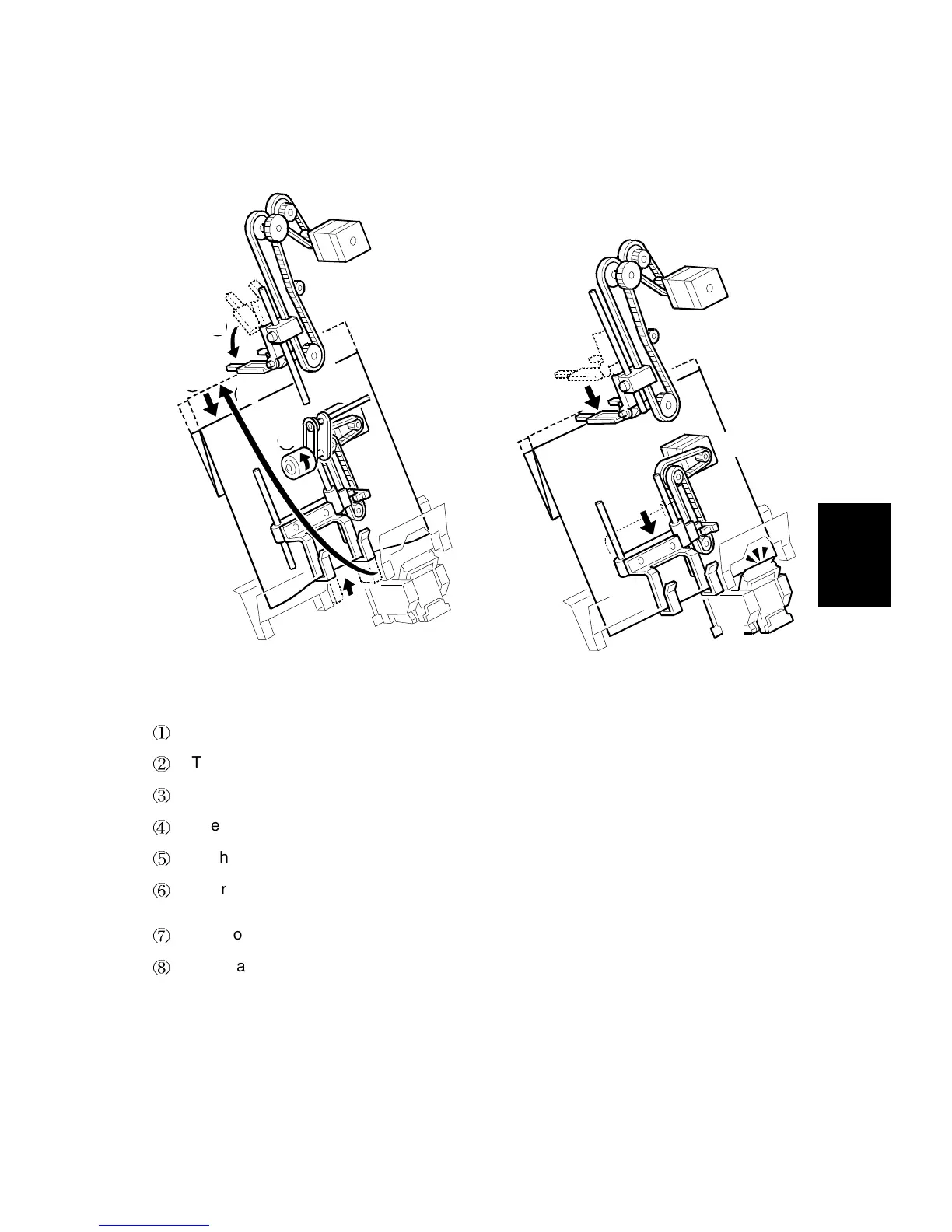

Here is the operation sequence for jogging and stapling:
၃
The lower jogger fence lifts to receive the sheets.
၄
The top fence moves down, to the horizontal position.
၅
A sheet of paper goes into the stapler tray.
၆
The positioning roller turns when each sheet is fed to the stapler tray.
၇
Each sheet is fed down against the lower jogger fence to align the bottom edge.
၈
After the set number of sheets come in, the top fence motor switches on and lowers
the top fence against the top of the stack. This aligns the stack for stapling.
၉
The bottom fence motor lowers the aligned stack to the stapling position.
၊
The stapler staples the stack.
4
3
5
2
1
B830D004.WMF
B830D005.WMF
