Ricoh D014 - Lower Stopper Motor;Hp Sensor, Relay Board

REPLACEMENT AND ADJUSTMENT
SM 7 B660
Z-
Folding Unit
B660
1.7 LOWER STOPPER MOTOR/HP SENSOR, RELAY
BOARD
Front cover (

1.2)

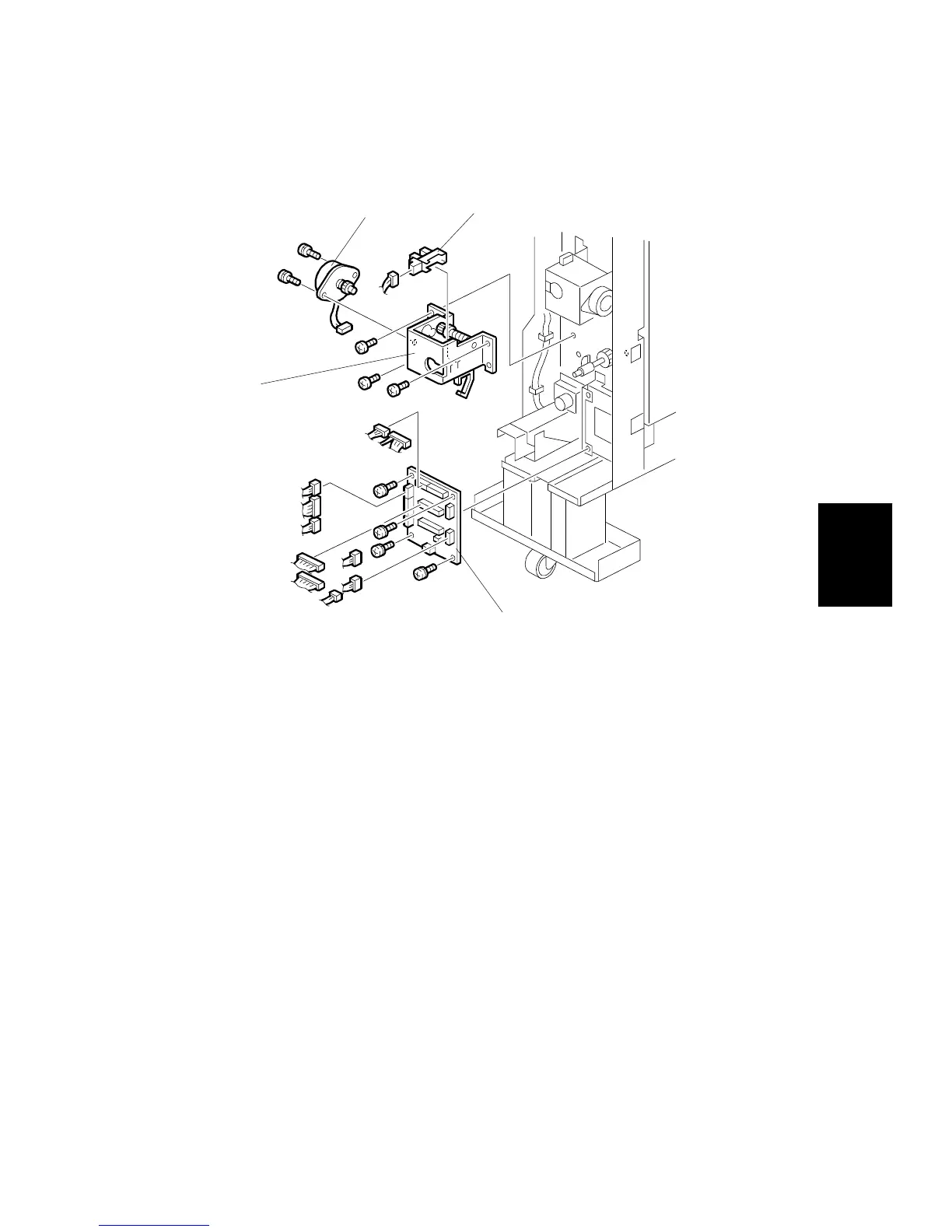

[A]: Lower stopper motor unit (

x 3,

x 2,

x 2),
[B]: Lower stopper HP sensor
[C]: Lower stopper motor (

x 2)
[D]: Relay board (

x 4,

x 3,

x 10)
B660R106.WMF
[A]
[B]
[C]
[D]
