Ricoh D014 - Fusing Lamps, Dividing the Fusing Unit

Fusing Unit
D014/D015/D078/D079 3-96 SM

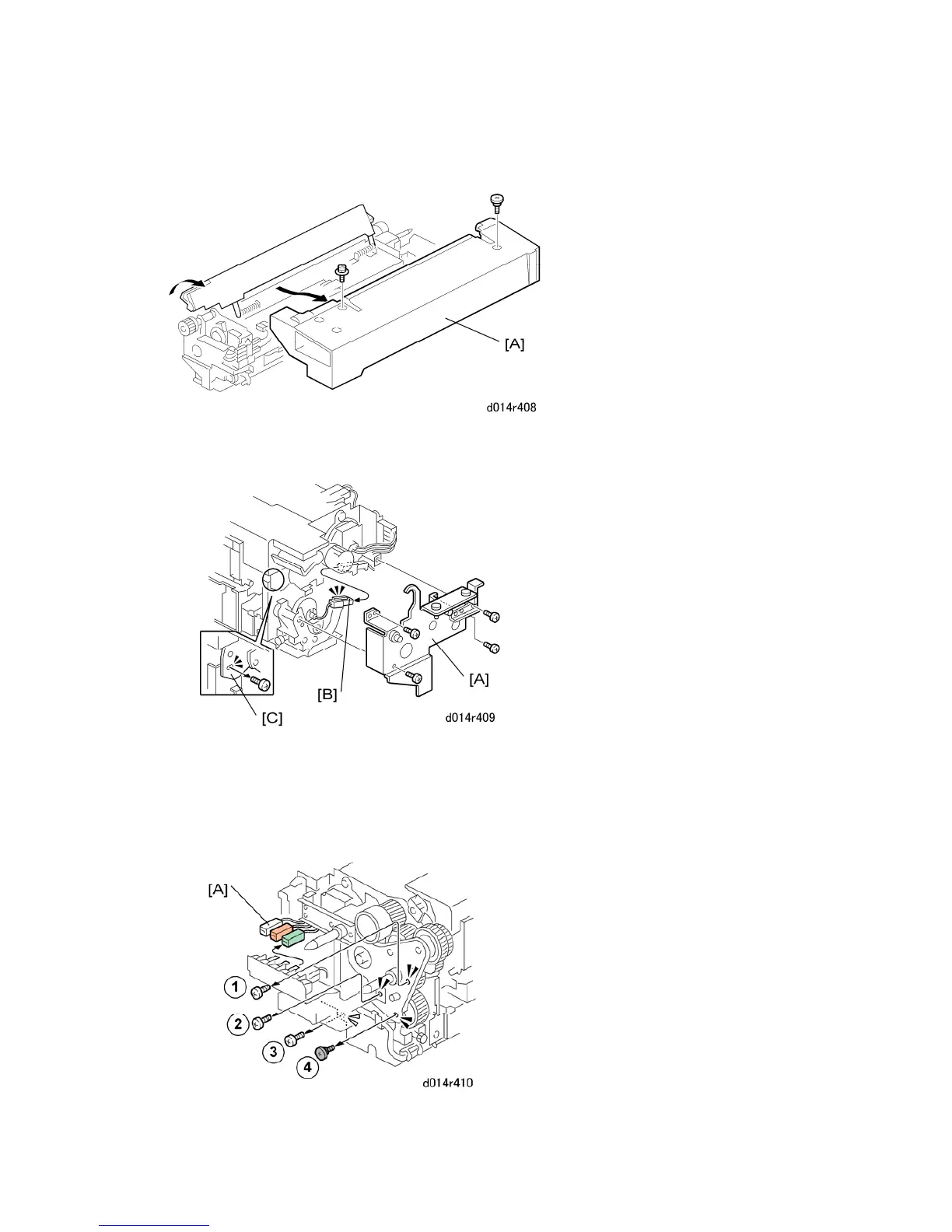

3.7.3 FUSING LAMPS, DIVIDING THE FUSING UNIT
1. Remove:
[A] Fusing unit cover ( x2)
2. Remove:
[A] Bracket ( x4)
[B] Connector ( x1)
[C] Screw ( x1)
