Ricoh D014 - Page 403

Fusing Unit
SM 3-97 D014/D015/D078/D079
Replacement
Adjustment
3. Disconnect
[A] Fusing lamps ( x3)
4. Remove screws {, , } (normal screws) ~ (step screw) ( x3)

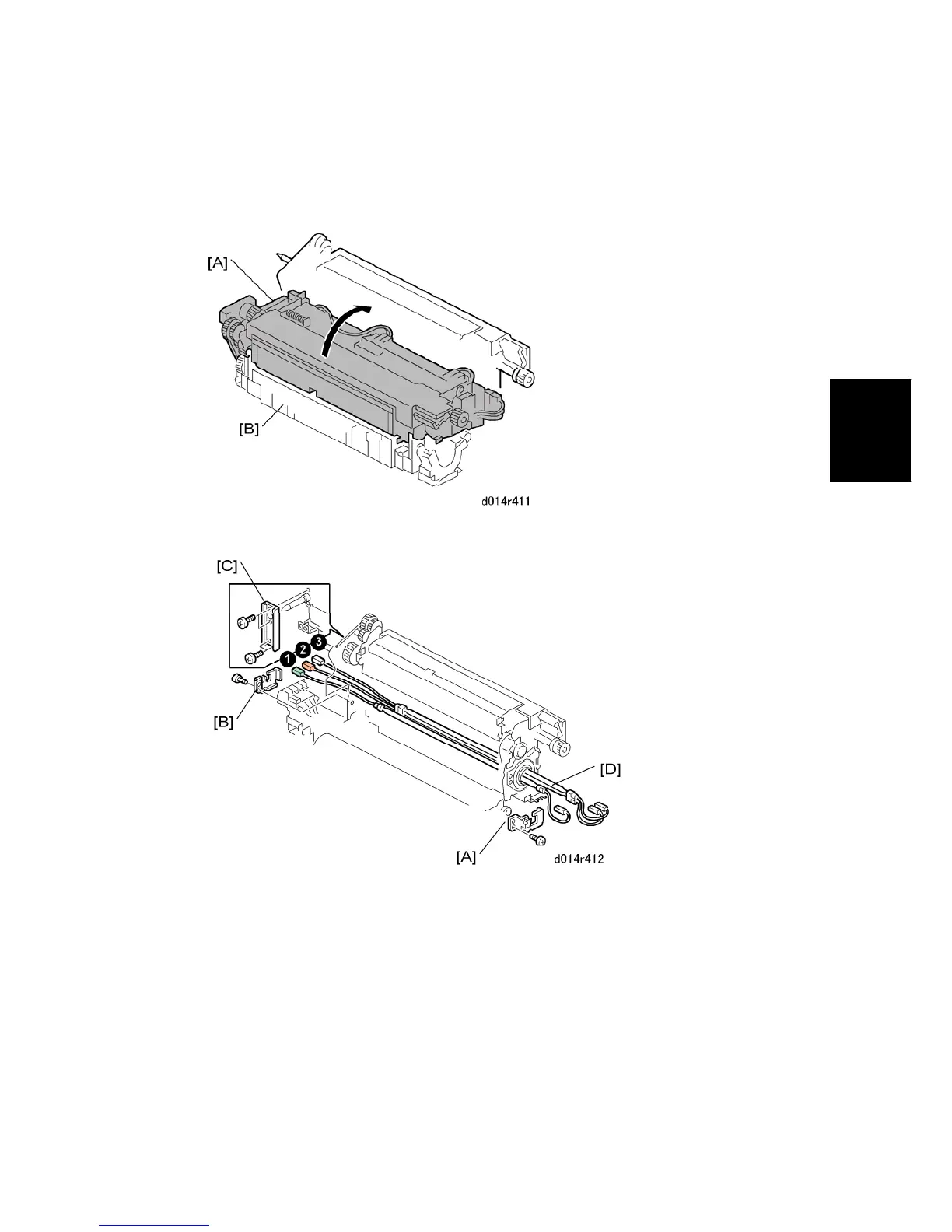

5. Separate the two halves of the fusing unit [A] and [B].
6. Remove:
[A] Lock plate ( x1)
[B] Lock plate ( x1)
[C] Bracket ( x4)
[D] Heating roller fusing lamps ( x3)
