1.3 ROLLERS
1.3.1 PAPER FEED ROLLER
1. Remove:
Paper feed unit
2. Remove:

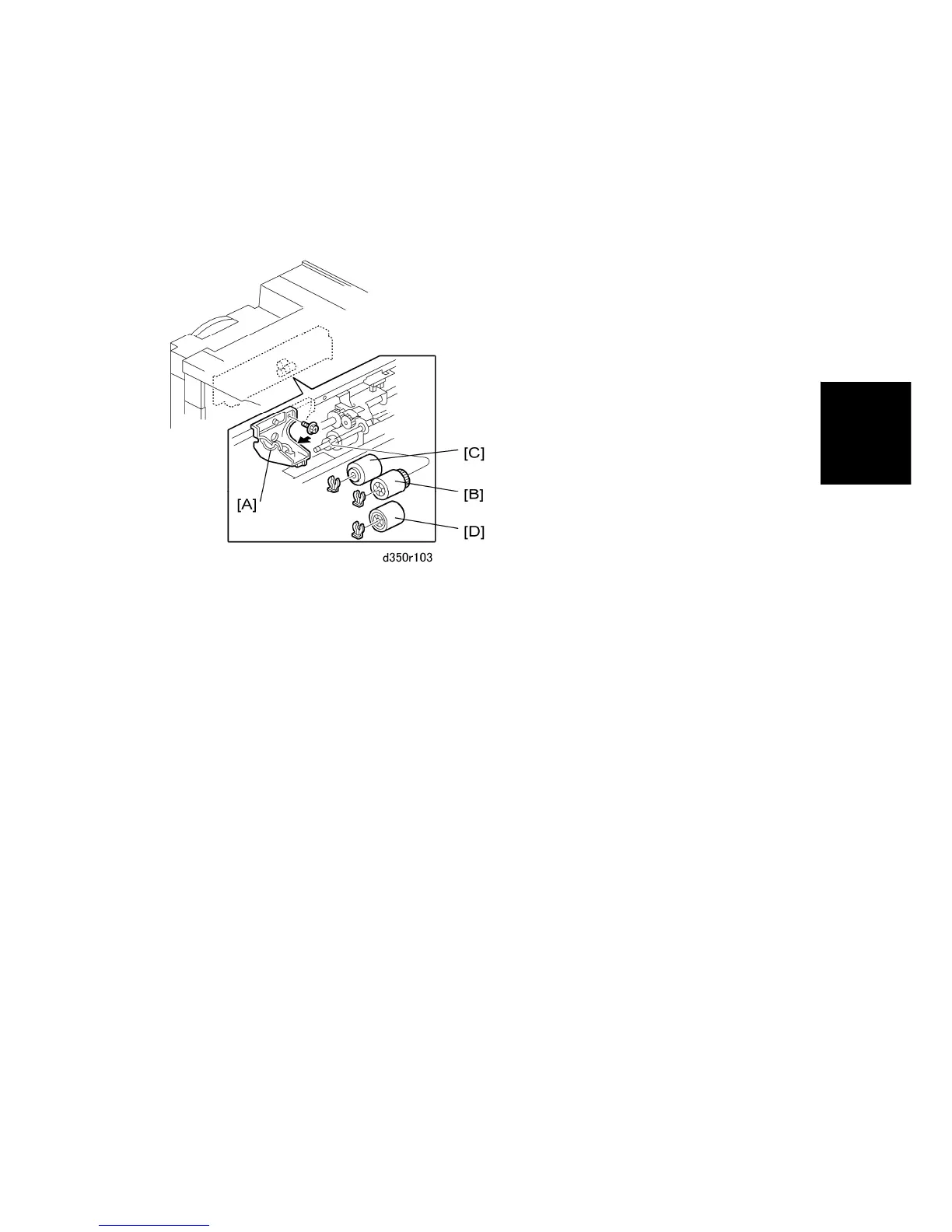

[A] Bracket ( x1)
[B] Pick-up roller ( x 1).
[C] Feed roller ( x 1).
[D] Separation roller ( x 1).
Note:
Never touch the surface of the rollers with bare hands.
The LCT pick-up and separation rollers are the same as the pick-up and separation
rollers in the paper trays of the main machine. These rollers are interchangeable.
The feed rollers of the LCT and main machine paper trays are different because they
are designed to rotate in the opposite direction. The feed rollers of the LCT and main
machine are not interchangeable.
