Differences Between the D014/D015 & B132/B200
D014/D015/D078/D079 D-14 SM
ELIMINATION OF SHINY PAWL MARKS ON PRINTS
Many customers requested elimination of the shiny streaks at the trailing edges of sheets
that were caused by the strippers that removed paper from the fusing belt.
The problem of paper separation from the fusing belt was solved in two ways:

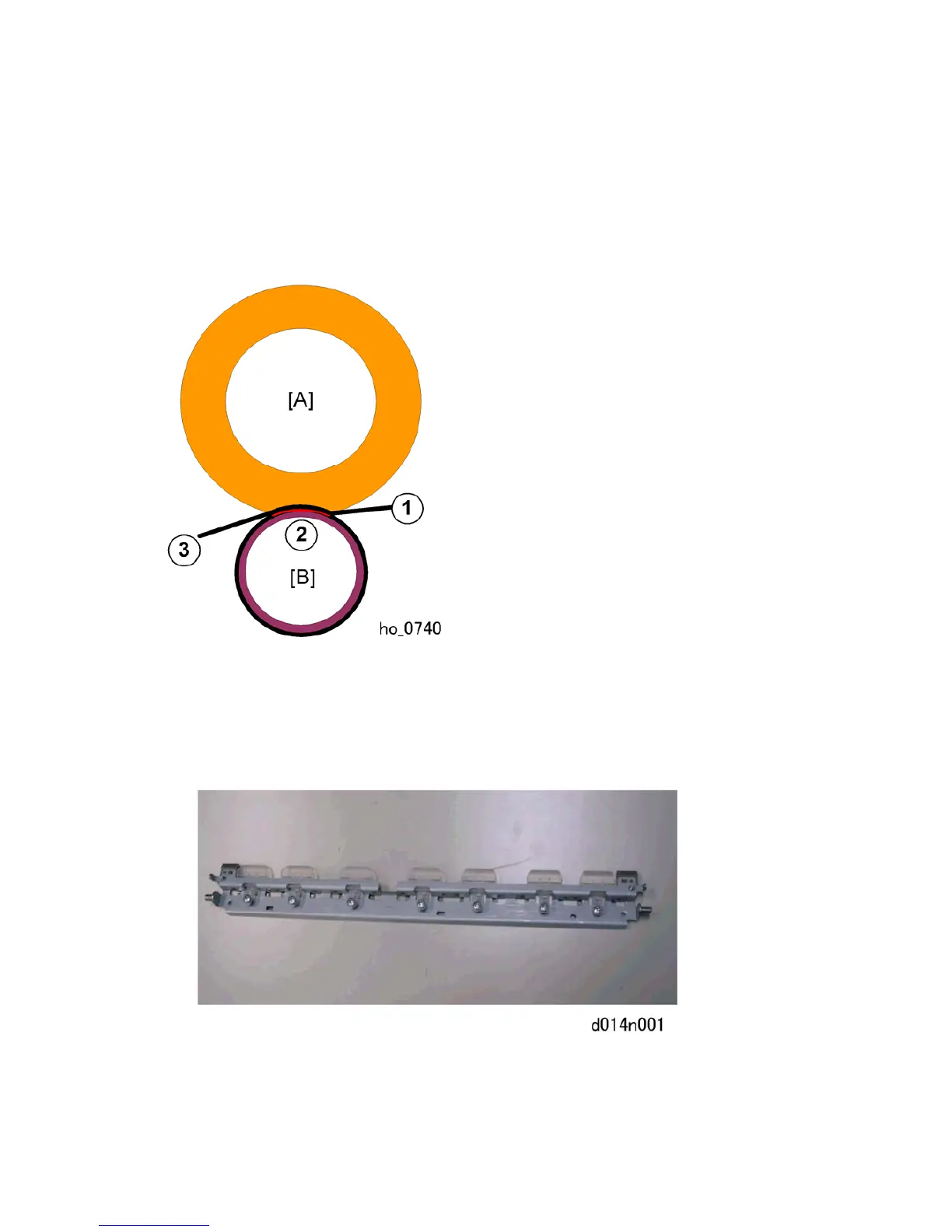

The design of the fusing unit was changed. The hot roller [A] is composed of soft
sponge. When the pressure roller [B] presses into the hot roller from below this creates
a much wider nip. The paper { enters the wider nip | and when it exits the nip at } the
curvature of the nip points the paper downward. This improves separation of the paper
from the fusing belt.
The fusing belt strippers were replaced by a new stripper plate equipped with flat soft
plates (not points) that will not leave marks on the paper.
