Common Procedures
SM 3-17 D014/D015/D078/D079
Replacement
Adjustment
3.2.8 IMAGE TRANSFER UNIT
1. Cover the floor or a table with paper to prepare a place to put the image transfer unit.
2. Open the front door.
3. Remove the toner hopper, then push the hopper rails into the machine.

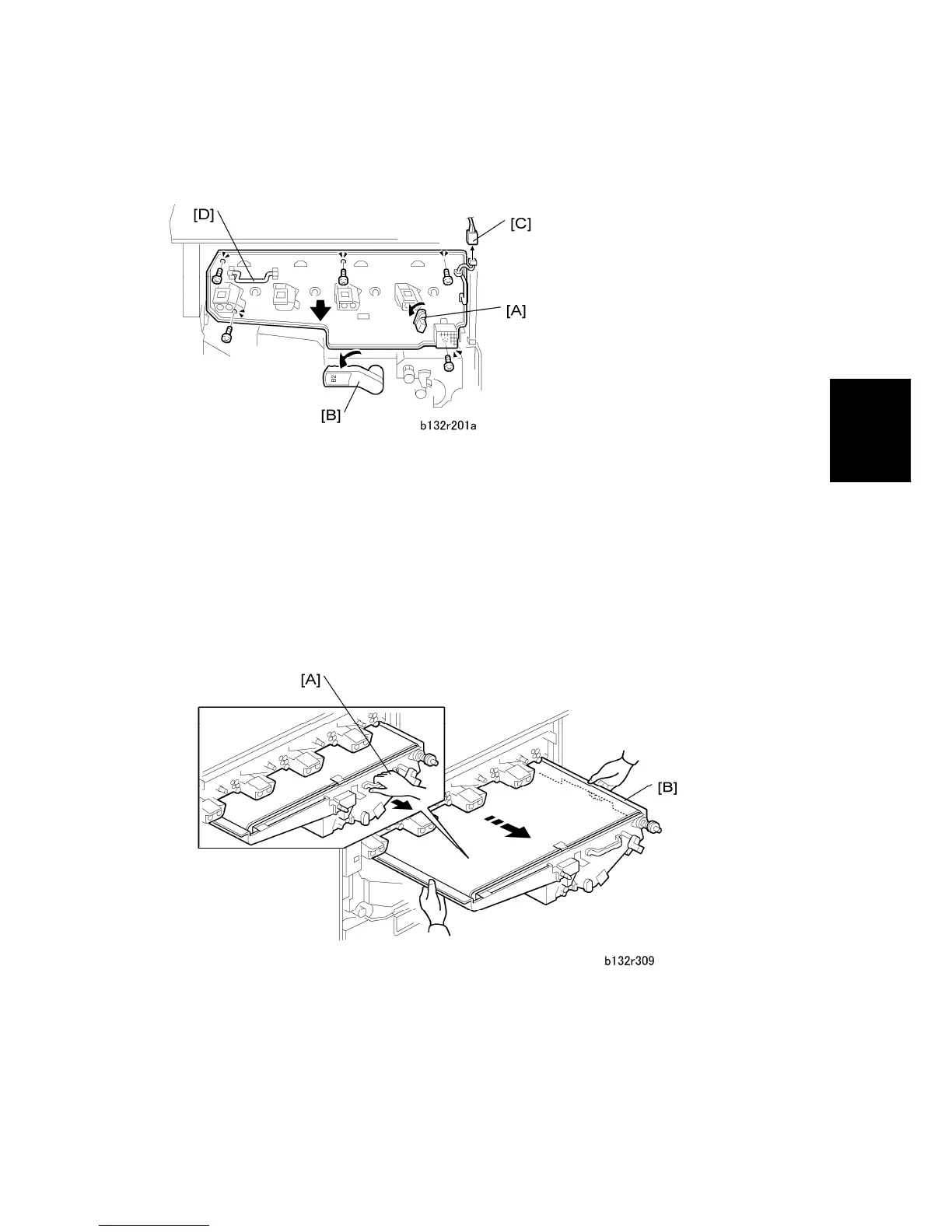

4. Rotate the transfer belt release lever [A] down to the left until it stops.
5. Rotate the lever B2 [B] on the drawer unit counter-clockwise to separate the transfer
roller from the ITB.
6. Disconnect [C].
7. Remove the faceplate [D] ( x1, x5).
8. Use the handle [A] on the front of the transfer unit to pull the unit [B] partially out of the
machine.
9. Grip both sides of the image transfer unit and pull it slowly out of the machine.
To Next Page
