Common Procedures
D014/D015/D078/D079 3-18 SM
Handling Precautions
Remove the image transfer unit carefully. The unit is heavy and not attached to the
rails with screws.

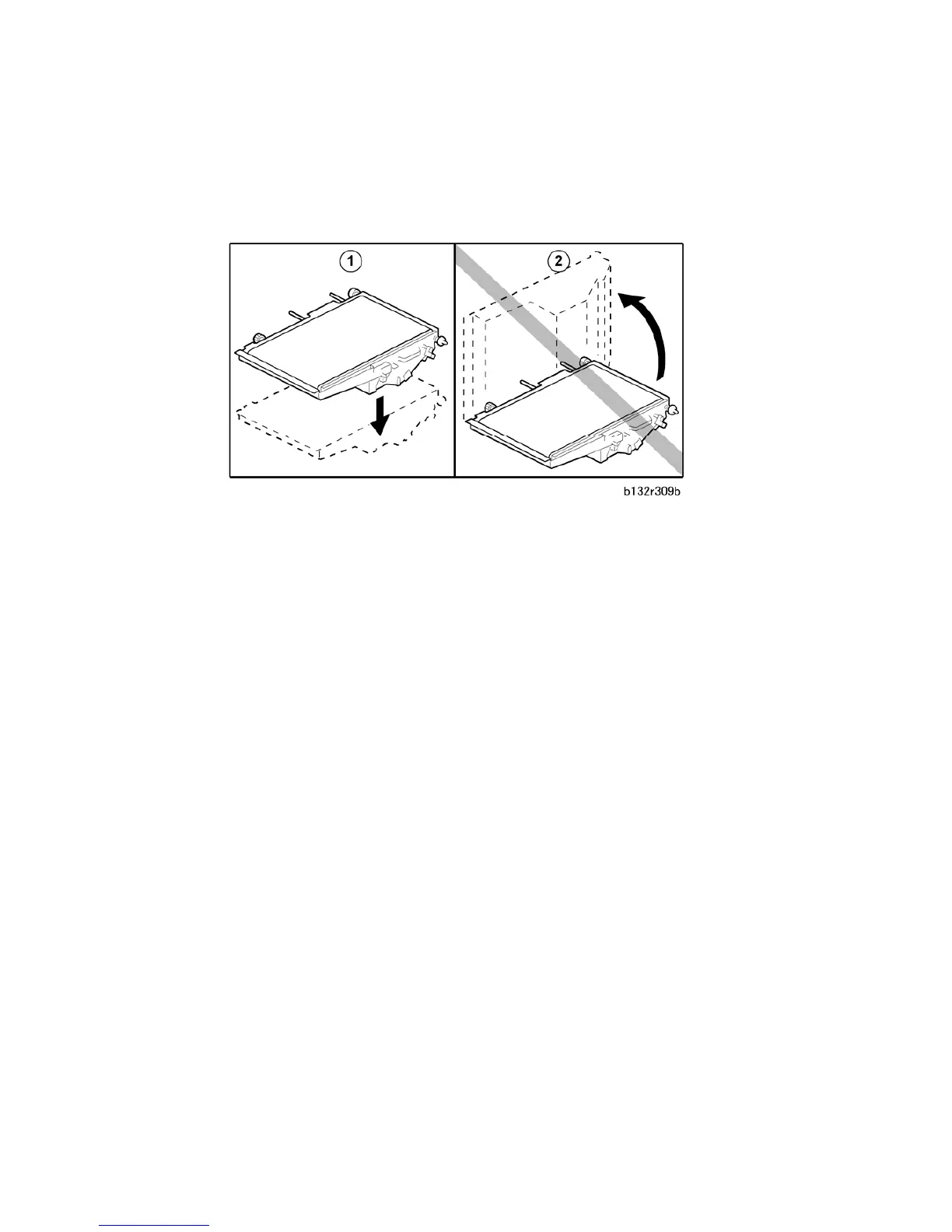

To prevent toner scattering inside and outside the unit, keep the unit { flat when
you remove it, lift it, carry it, and put it down.
Never stand the ITB unit | on its edge before you remove the cleaning unit from
the ITB.
Never place the ITB unit on a carpet where toner can scatter or where the unit will
collect dust.
Reinstallation
Re-insert the image transfer unit slowly and carefully to avoid snagging the belt on the
frame of the machine.
Make sure that the image transfer unit does not snag on the toner cap of the yellow
PCU on the far left.
