Ricoh D014 - Fusing Unit Rollers, Fusing Belt; Removing the Fusing Belt, Hot Roller, Heating Roller, Pressure Roller

Fusing Unit
SM 3-99 D014/D015/D078/D079
Replacement
Adjustment

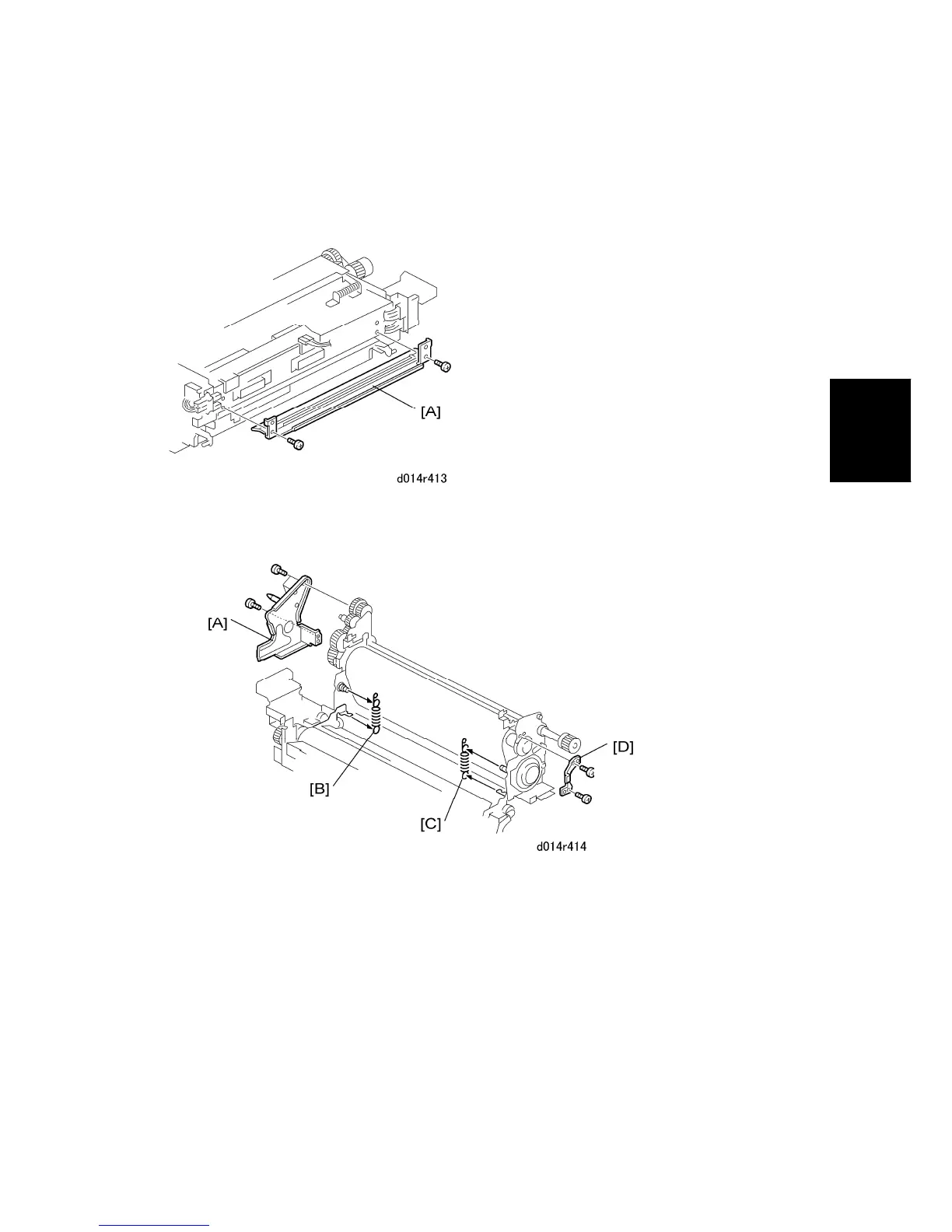

3.7.4 FUSING UNIT ROLLERS, FUSING BELT
Removing the Fusing Belt, Hot Roller, Heating Roller, Pressure Roller
1. Remove:
[A] Upper entrance guide plate ( x2)
2. Remove:
[A] Plate ( x4)
[B] Spring x1
[C] Spring x1
[D] Bracket ( x2)
