Fusing Unit
D014/D015/D078/D079 3-100 SM

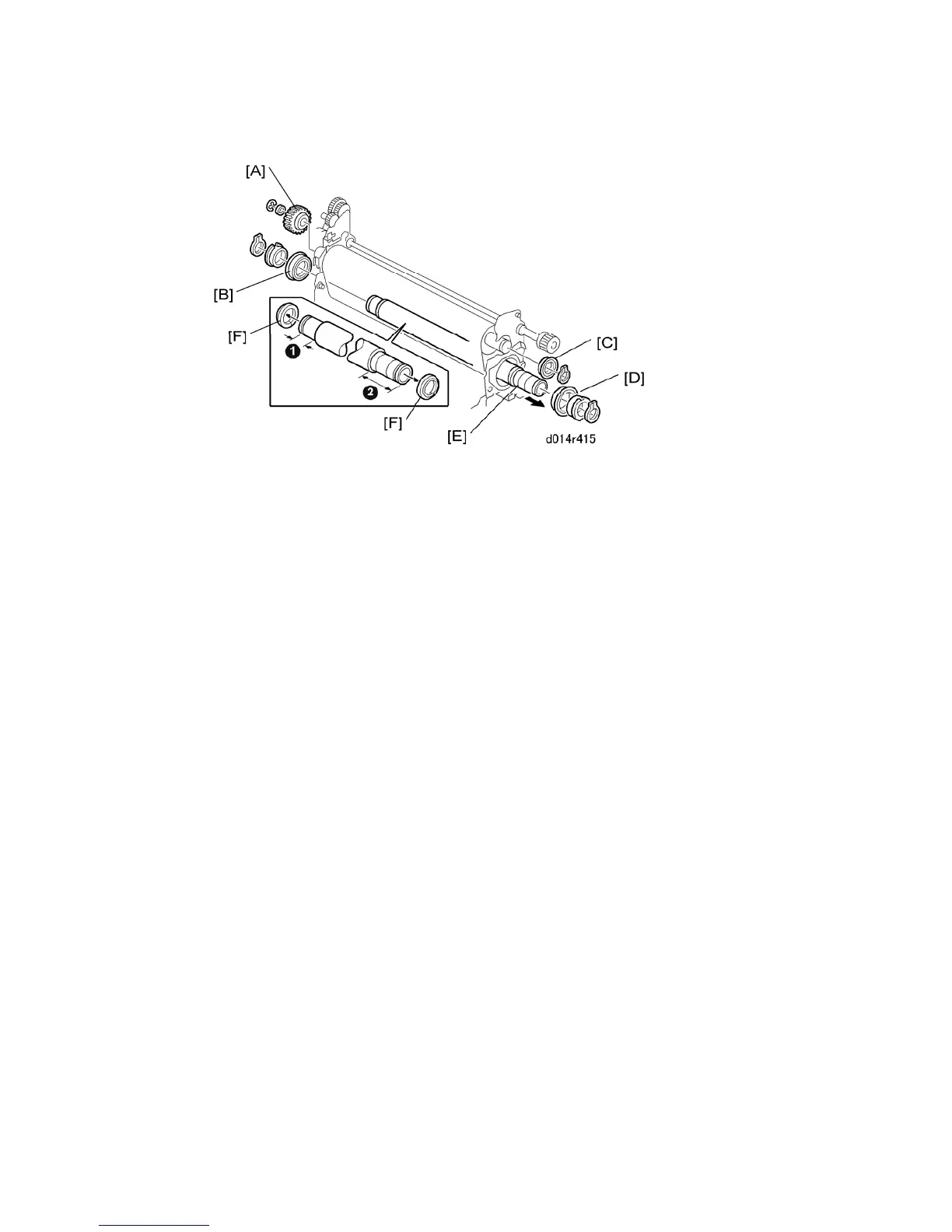

3. Remove:
[A] Gear, bushing ( x1)
[B] Bearing, bushing (C-ring x1)
Note: The flanges of the bearing and the bushing face out for reinstallation.
[C] Bearing (C-ring x1)
Note: The bearing flange faces out for reinstallation.
[D] Bearing, bushing (C-ring x1)
Note: The flanges of bearing and the bushing face out for reinstallation.
[E] Heating roller
Note:
Flanges [F] should be separated from the heating roller.
Flanges [F] should be reused with the new roller if the heating roller is replaced.
Reinstallation
Make sure that the ends of the heating roller are arranged as shown by { and in the
illustration above. ({ is shorter than .)
To Next Page
