Ricoh D014 - Drag Roller;Drag Drive Motors, Drag Drive Hp Sensor

REPLACEMENT AND ADJUSTMENT
SM 21 B830
Finisher
B830
1.6.2 DRAG ROLLER/DRAG DRIVE MOTORS, DRAG DRIVE HP
SENSOR
Remove:
• Front door and all covers, except the left lower cover, top cover (

1.1)
NOTE: Be sure to lower the shift tray by pulling the gear toward you. The shift
tray must be down.

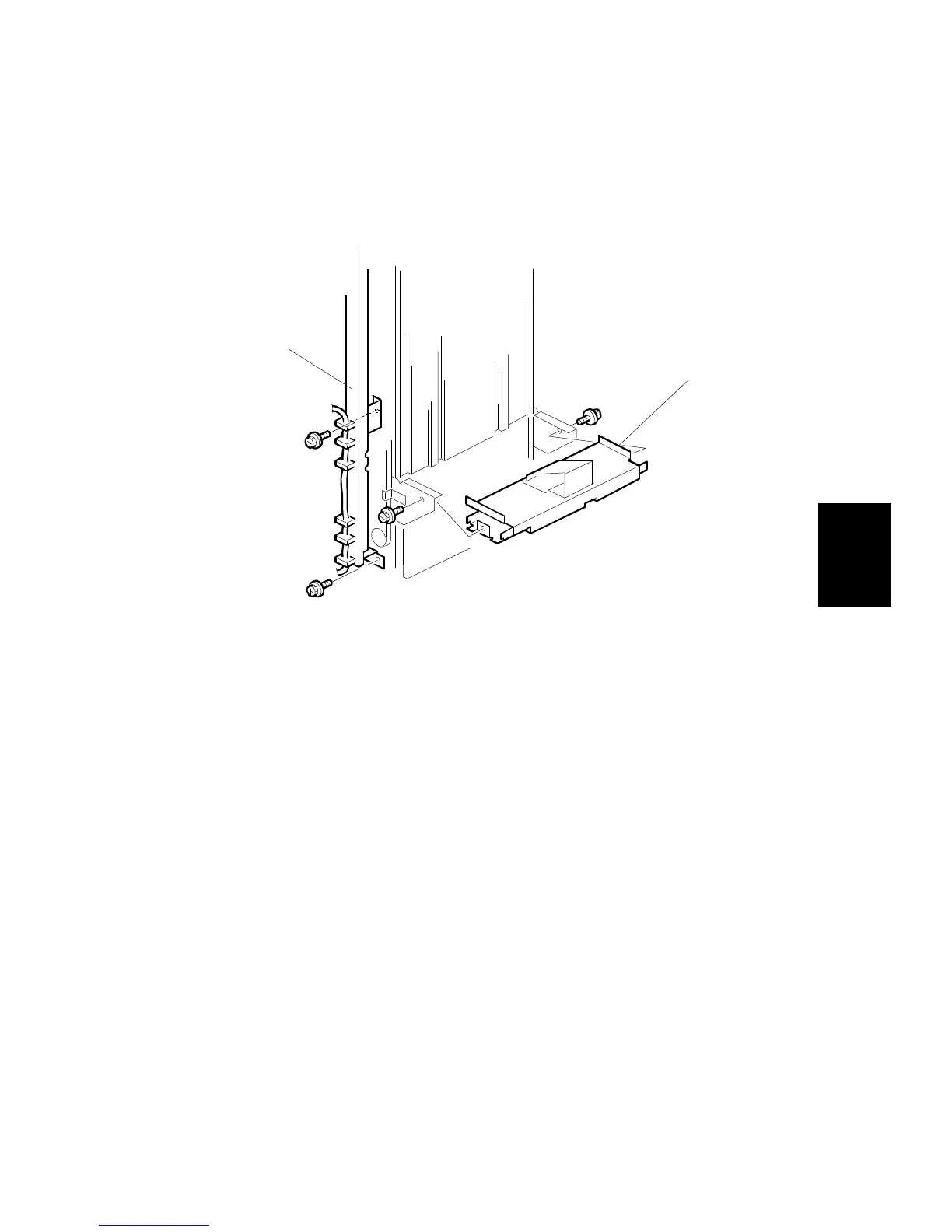

1. Remove the left stay [A] (

x 2)
2. Remove the shift tray mounting plate [B] ( x 2).
B830R526.WMF
[A]
[B]
