DETAILS
SM 27 B835
Cover
Interposer
Tray
B835
2.2.3 PAPER SIZE DETECTION
The side fences
and
can be adjusted to standard and non-standard paper
sizes.

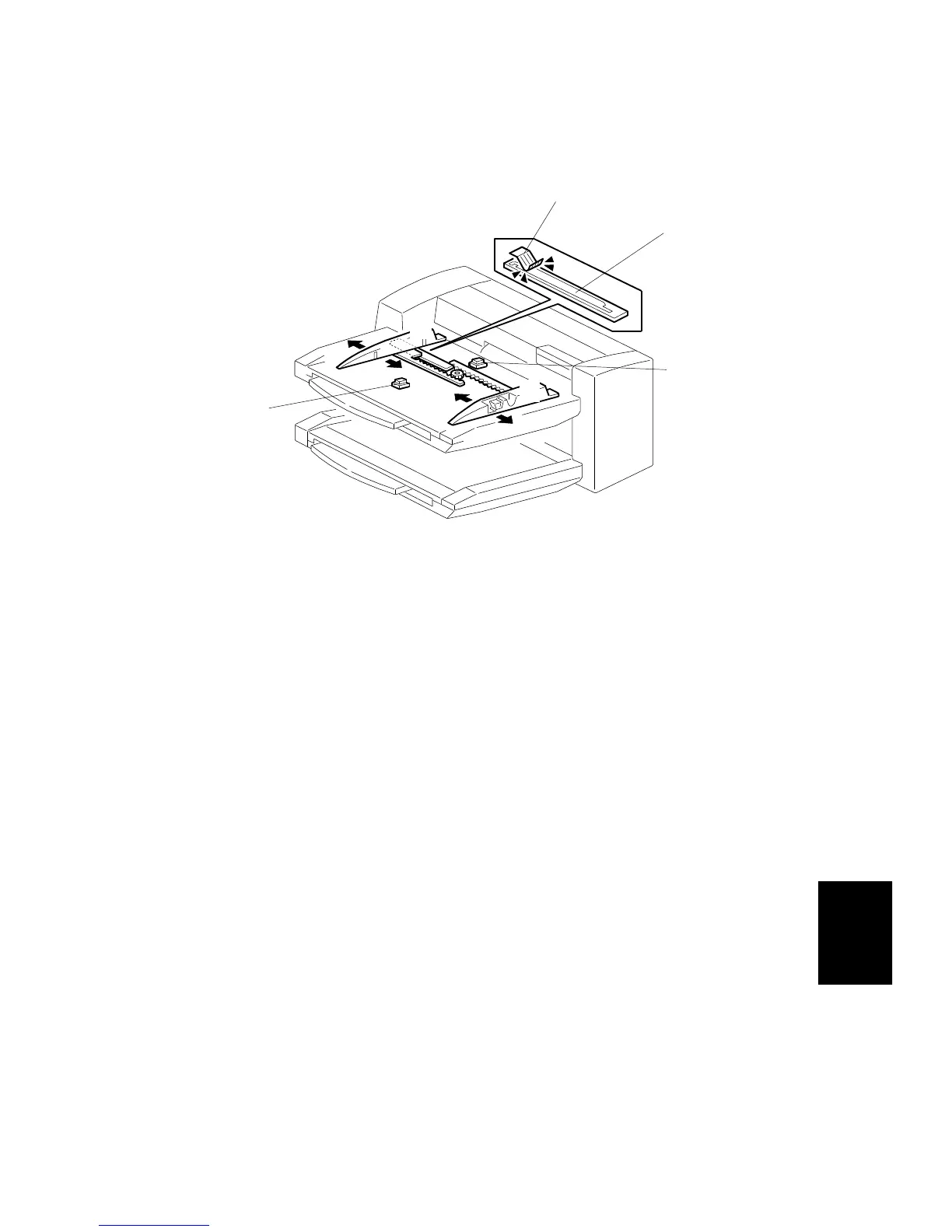

When the side fences are moved to match the paper width, a feeler [A] slides along
the wiring patterns on the paper width switch terminal plate [B].
The combination of the following two factors determines the paper size:
• The position where the feeler activates the terminal
• The status of the paper length sensor [C] (ON or OFF).
The paper end sensor [D] de-activates when the last sheet is fed and reports that
the paper tray is empty.
B835D105.WMF
