Fold Unit
B804/B805/D373/D374 10 SM
1.4 FOLD UNIT
1.4.1 FOLD UNIT

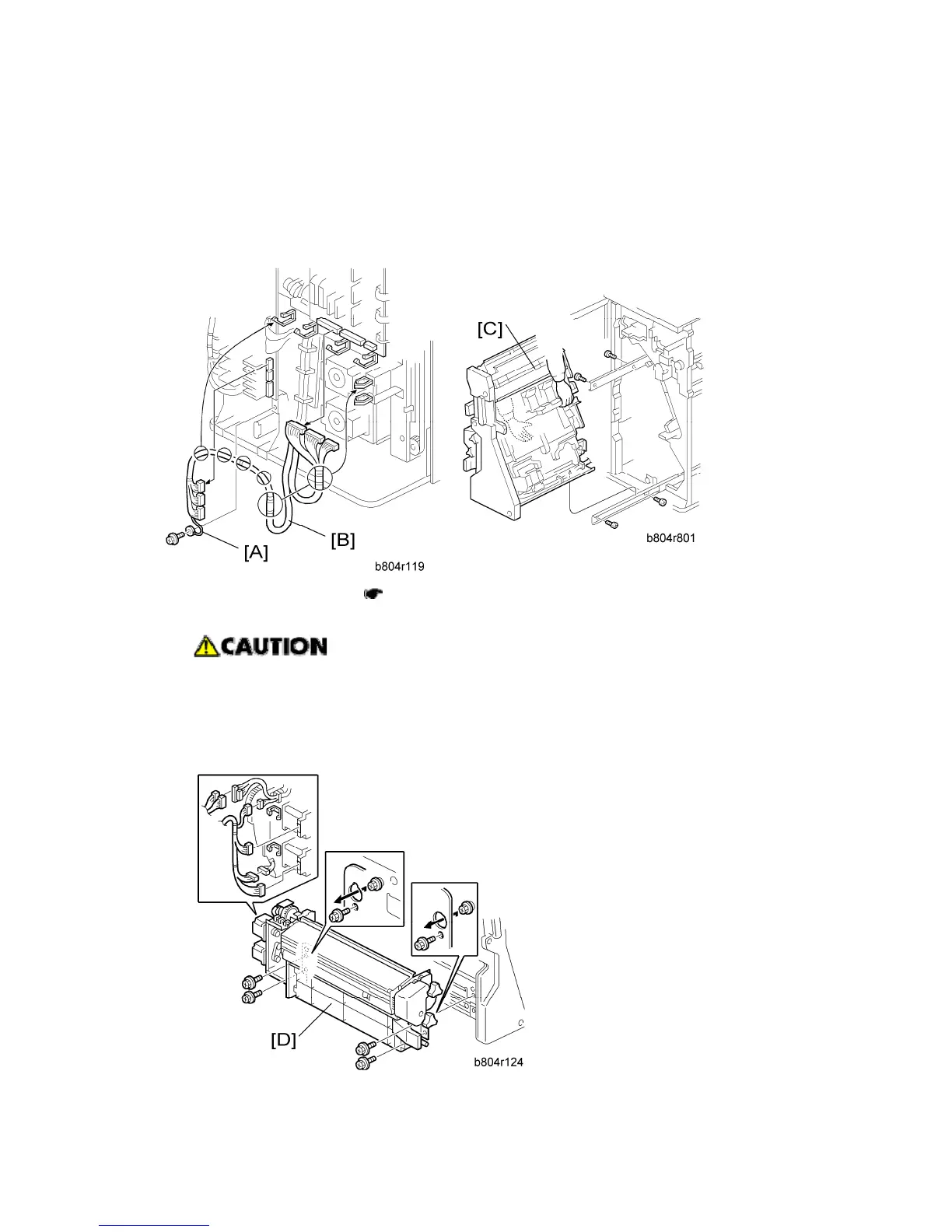

1. Remove the back cover ( 1.1.1 "Exterior Covers").
2. Open the front door.
 The stapler unit is heavy.
3. Ground cable [A] ( x1)
4. Harness [B] (= x6,  x6)
5. Stapler unit [C] ( x4)
