Ricoh D014 - Fold Roller Motor

REPLACEMENT AND ADJUSTMENT
B660 10 SM
1.10 FOLD ROLLER MOTOR
1. Pull the Z-folding mechanism out of the unit, but not fully.
2. Remove: (

1.2)
• Left cover
• Right cover
• Rear cover

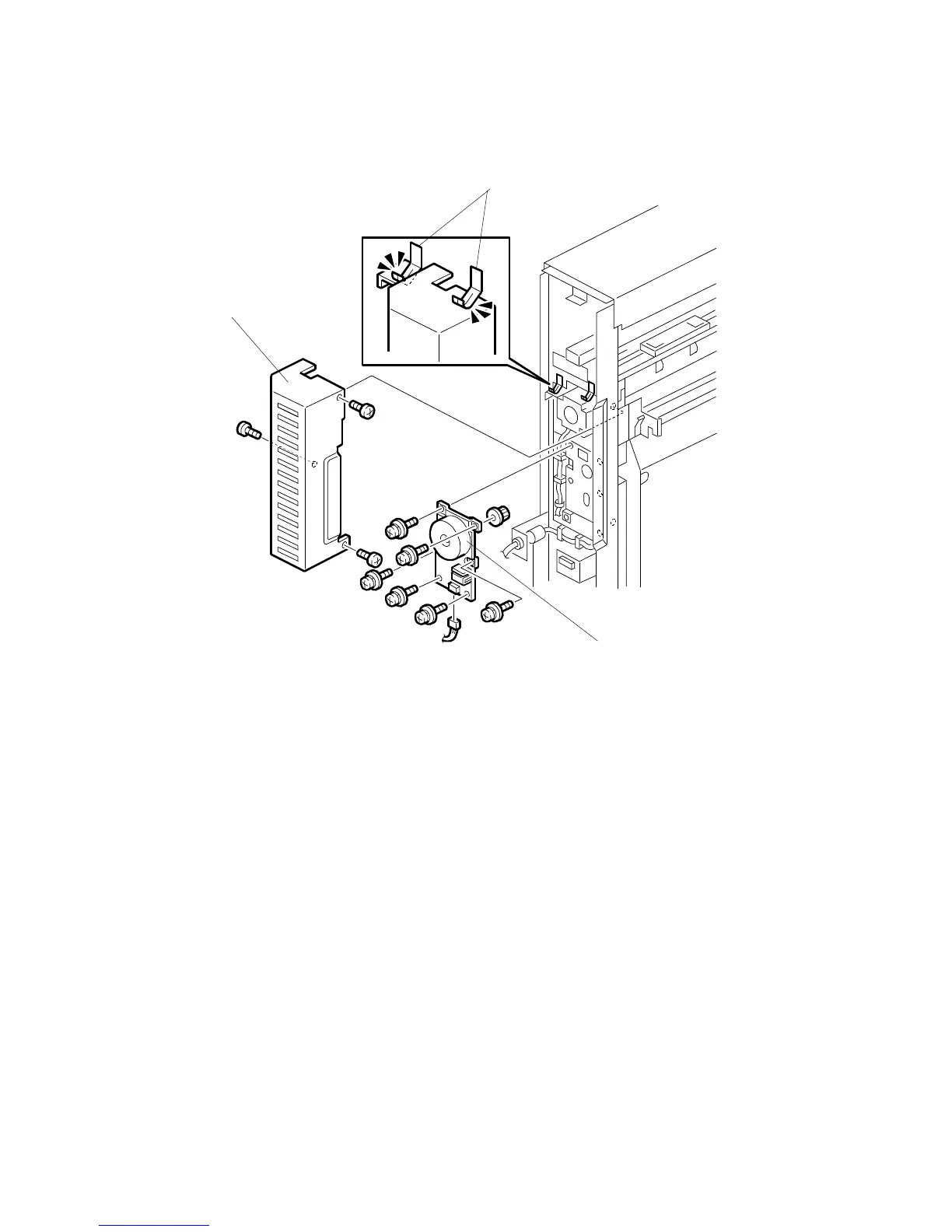

[A]: Motor cover (

x 3)
[B]: Fold roller motor (

x 6,

x 1, timing belt x 1)
Reinstallation
Make sure that the motor cover is below the leaf springs [C].
B660R110.WMF
[A]
[B]
[C]
