Image Transfer Unit
D014/D015/D078/D079 3-88 SM
3.6.6 IMAGE TRANSFER POWER PACK

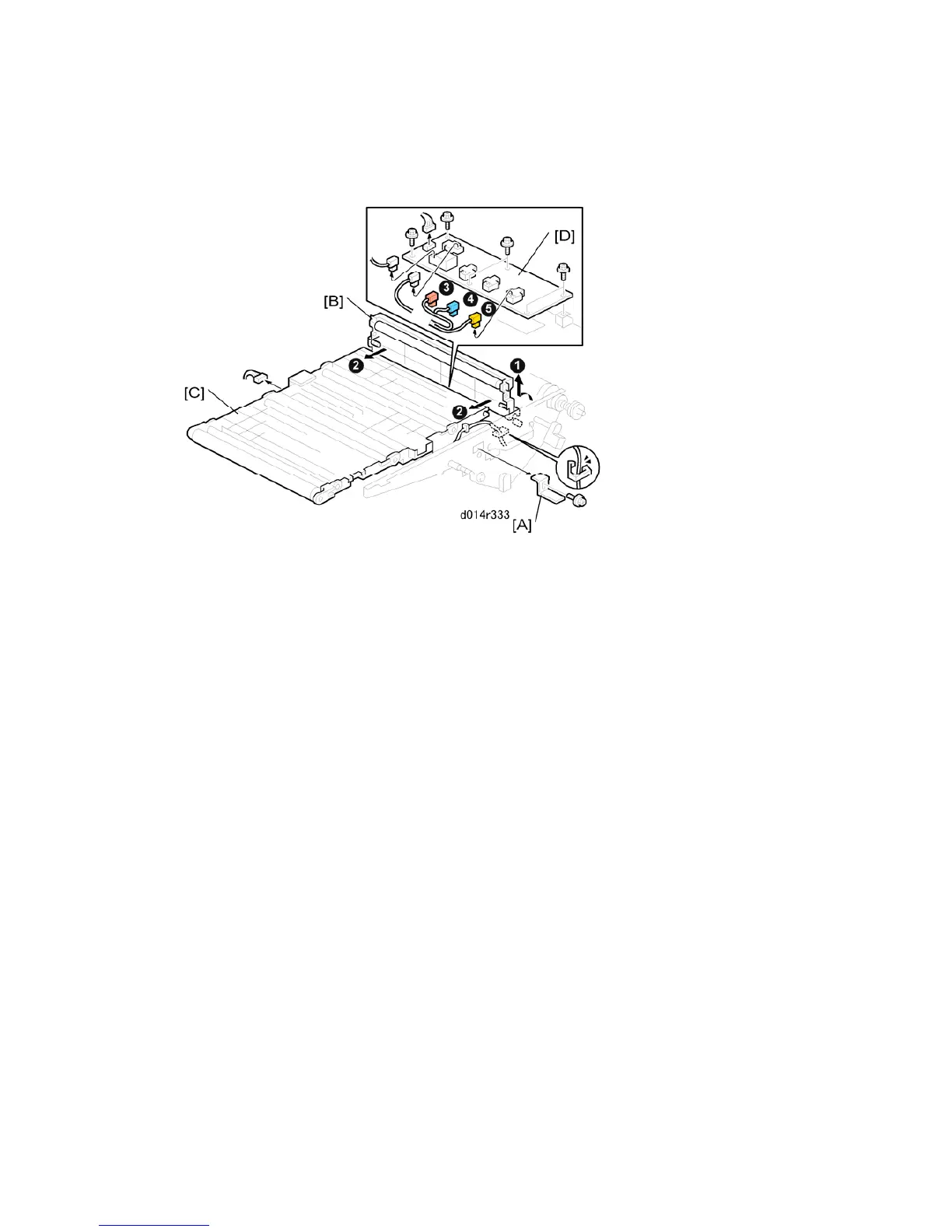

1. Remove:
ITB
[A] Support bracket ( x1)
[B] Small idle roller plate
[C] Large idle roller plate
[D] Image transfer power pack ( x6, x6)
2. Note the correct positions of the color coded connectors when you disconnect them, so
that you can reconnect them correctly:
} Red
~ Blue
Yellow
To Next Page
