Image Transfer Unit
SM 3-89 D014/D015/D078/D079
Replacement
Adjustment
Reinstallation

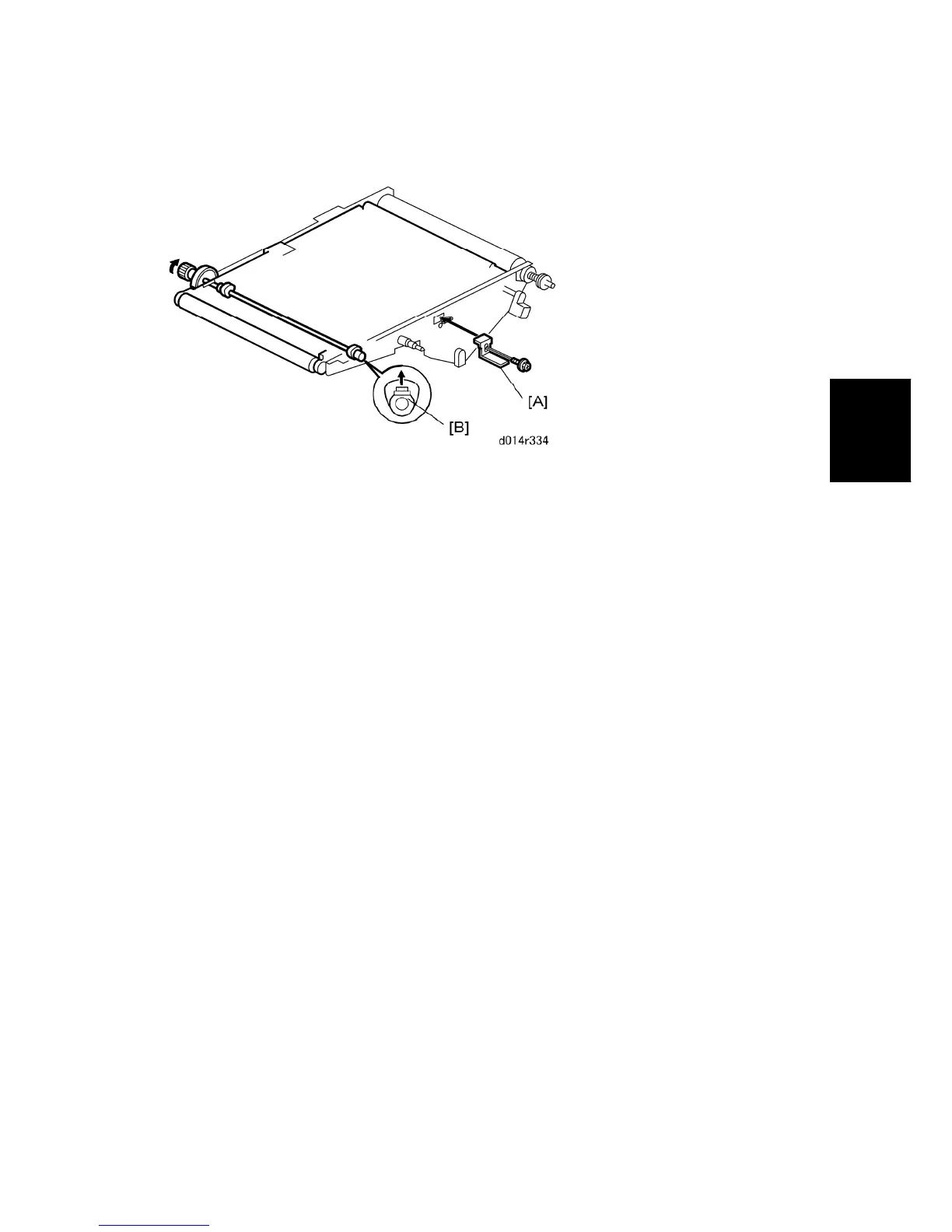

When you reattach the support bracket [A], rotate the screw [B] up as shown, then
tighten it.
Do the forced MUSIC adjustment with SP2111-1.
