Ricoh D014 - Shift Motor and Sensors

REPLACEMENT AND ADJUSTMENT
B830 24 SM
1.6.3 SHIFT MOTOR AND SENSORS
1. Remove the end fence (

1.6.2)

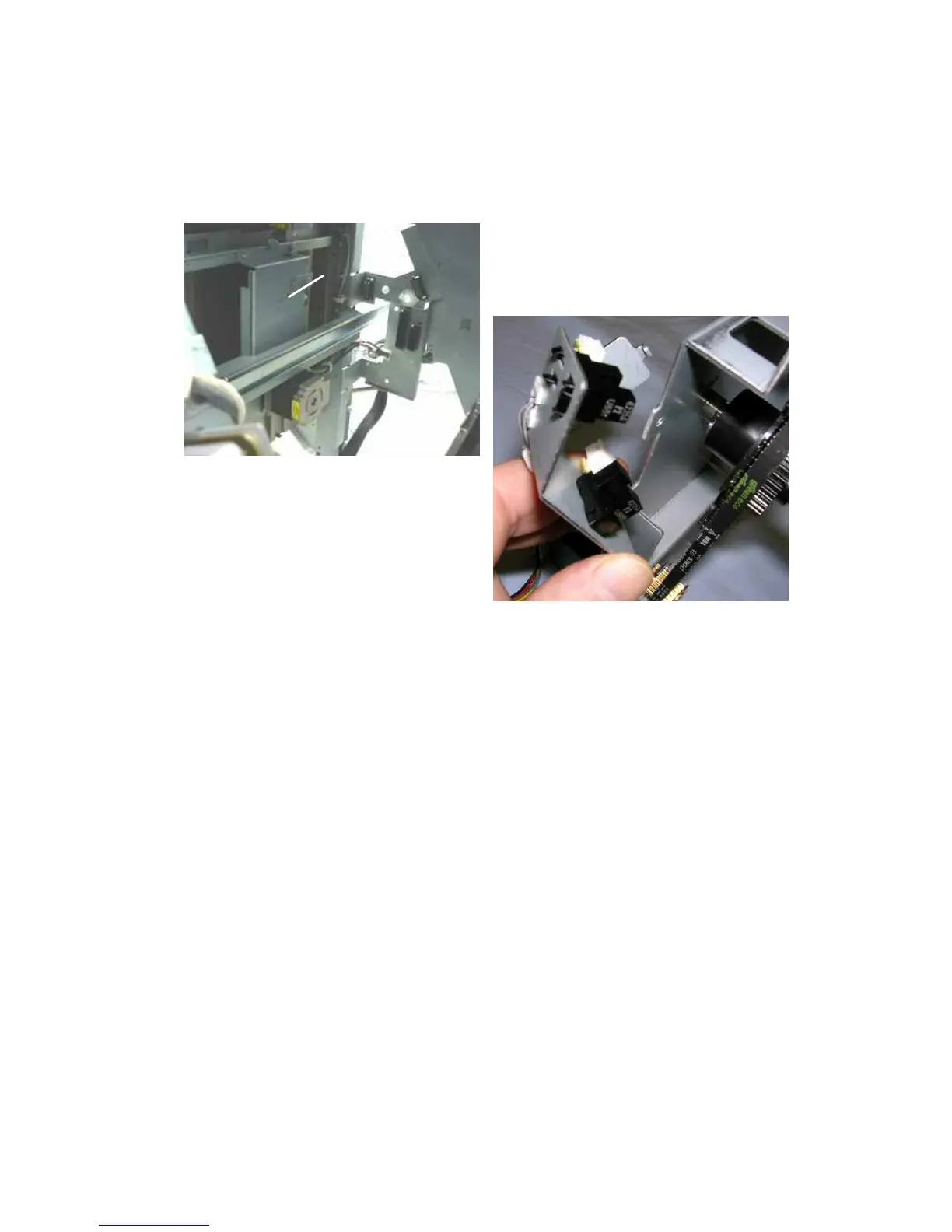

2. Remove the shift motor bracket [A] (with motor) (

x 4,

x1,

x1)
3. Remove the shift motor (

x4)
4. Remove the half-turn sensor bracket [B] (

x 1)
5. Remove half-turn sensor 1 [C] (

x1, Pawls x3)
6. Remove half-turn sensor 2 [D] (

x1, Pawls x3)
[A]
[C]
[D]
[B]
