REPLACEMENT AND ADJUSTMENT
SM 23 B830
Finisher
B830

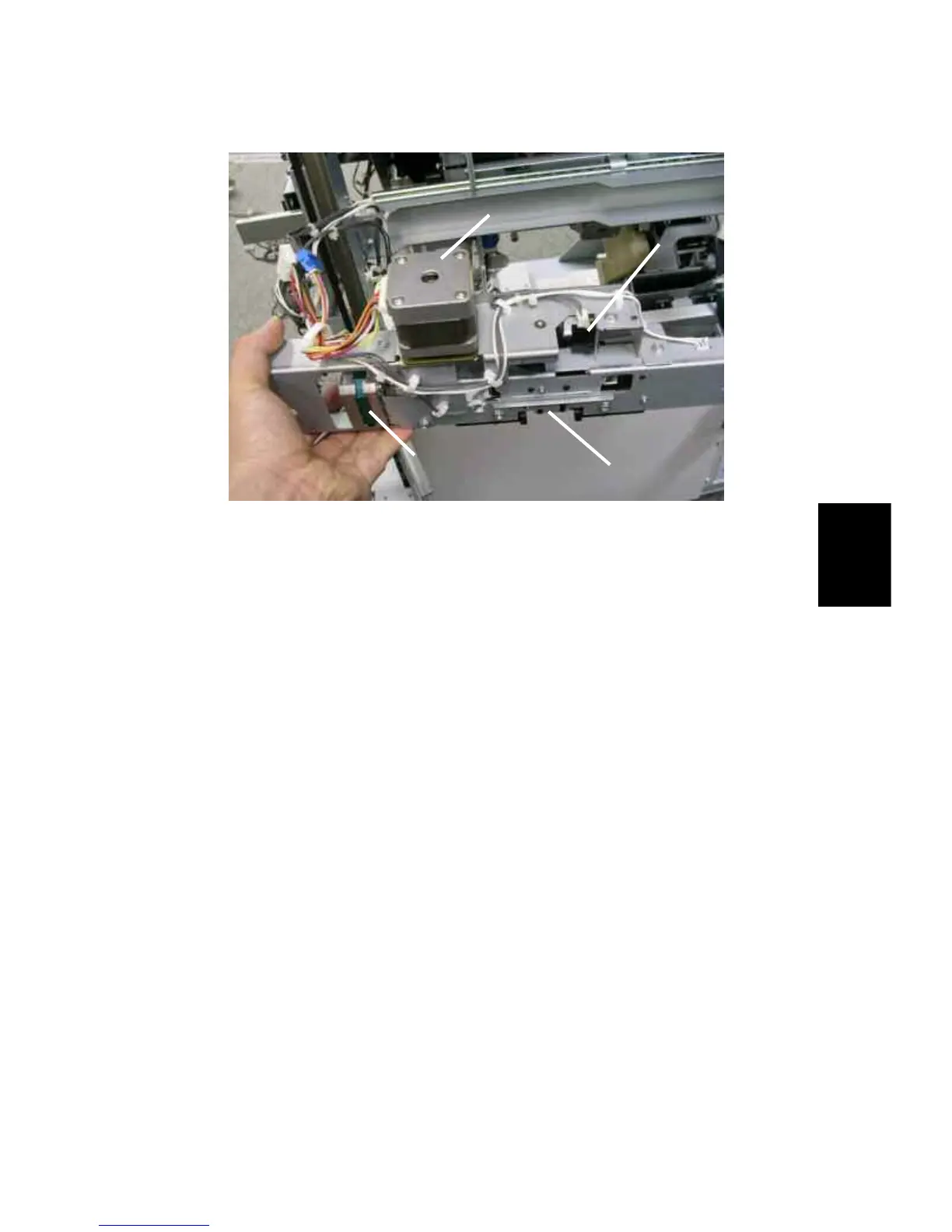

6. Remove the drag roller motor unit [A] (Bearing x1,

x2,

x1)
7. Remove the drag roller motor (

x2)
8. Remove the drag roller HP sensor unit [B] (

x1)
9. Remove the drag roller HP sensor (

x1, Pawls x3)
10. Remove the paper height sensor – shift/Z-fold unit [C] (

x2,

x2)
11. Remove the paper height sensor shift/Z-fold (

x1, Pawls x3)
12. Remove the drag drive motor unit (

x4,

x2)
13. Remove the drag drive motor (

x2)
[A]
[B]
[C]
[D]
