Installation
SM 9 D356
D356
Fax Option
Type C7500

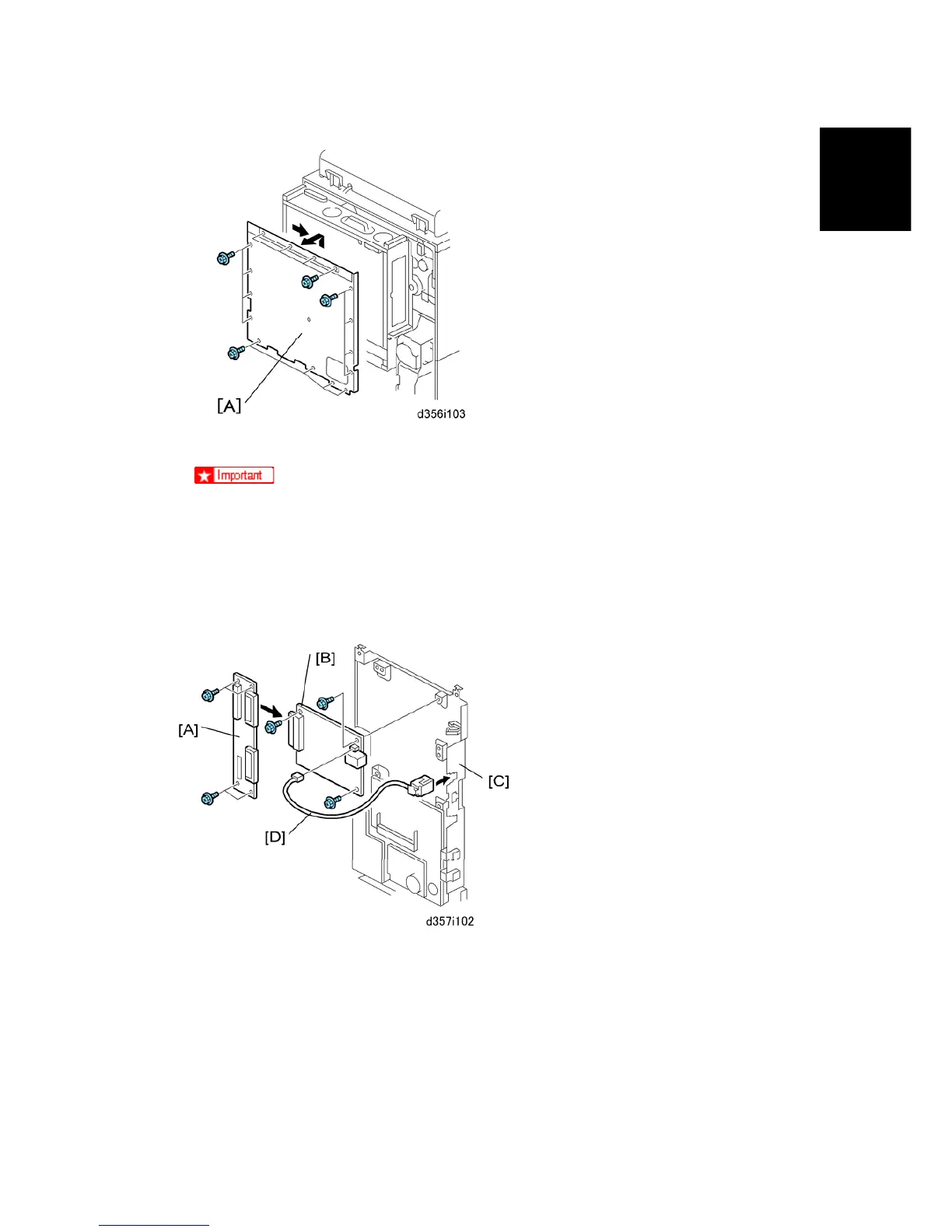

3. Remove the controller box cover [A] (x16)
Important! If the Fax Unit (D356) has already been installed, skip Steps 4, 5
and go to Step 6.
4. Disconnect the speaker harness (x1).
5. Remove the FCU and VITS (x5).
To install a Single G3 Board
1. Attach the CCUIF [A] to the SG3 board [B].
2. Attach the assembled CCUIF/SG3 board to the FCU [C] (x7).
3. Connect harness [D] to the FCU [C].
