Ricoh D014 - ITB Brush Cleaning Roller

Image Transfer Unit
D014/D015/D078/D079 3-86 SM

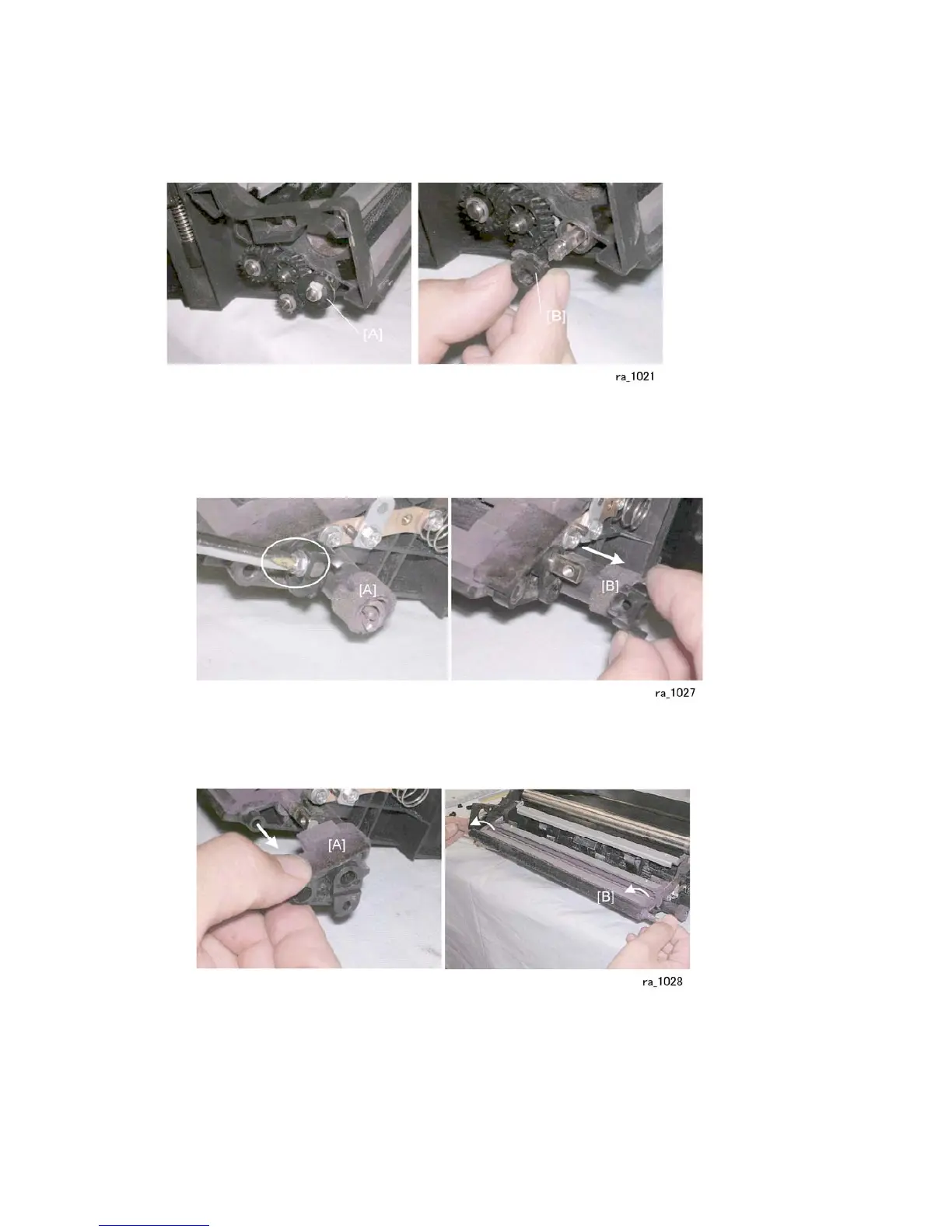

ITB Brush Cleaning Roller
1. Remove the ITB cleaning blade ( x2).
2. At the rear:
 Remove gear [A] ( x1).
 Remove coupling [B].
3. At the front:
 Remove screw [A] ( x1)
 Remove coupling [B].
4. Remove sponge and seal casing [A].
5. Remove the ITB brush cleaning roller [B].
