Ricoh D014 - Boards; Tray Unit Control Board

REPLACEMENT AND ADJUSTMENT
B835 6 SM
1.4 BOARDS
1.4.1 TRAY UNIT CONTROL BOARD
Remove:
• Tray unit rear cover (

x2) (

1.1)

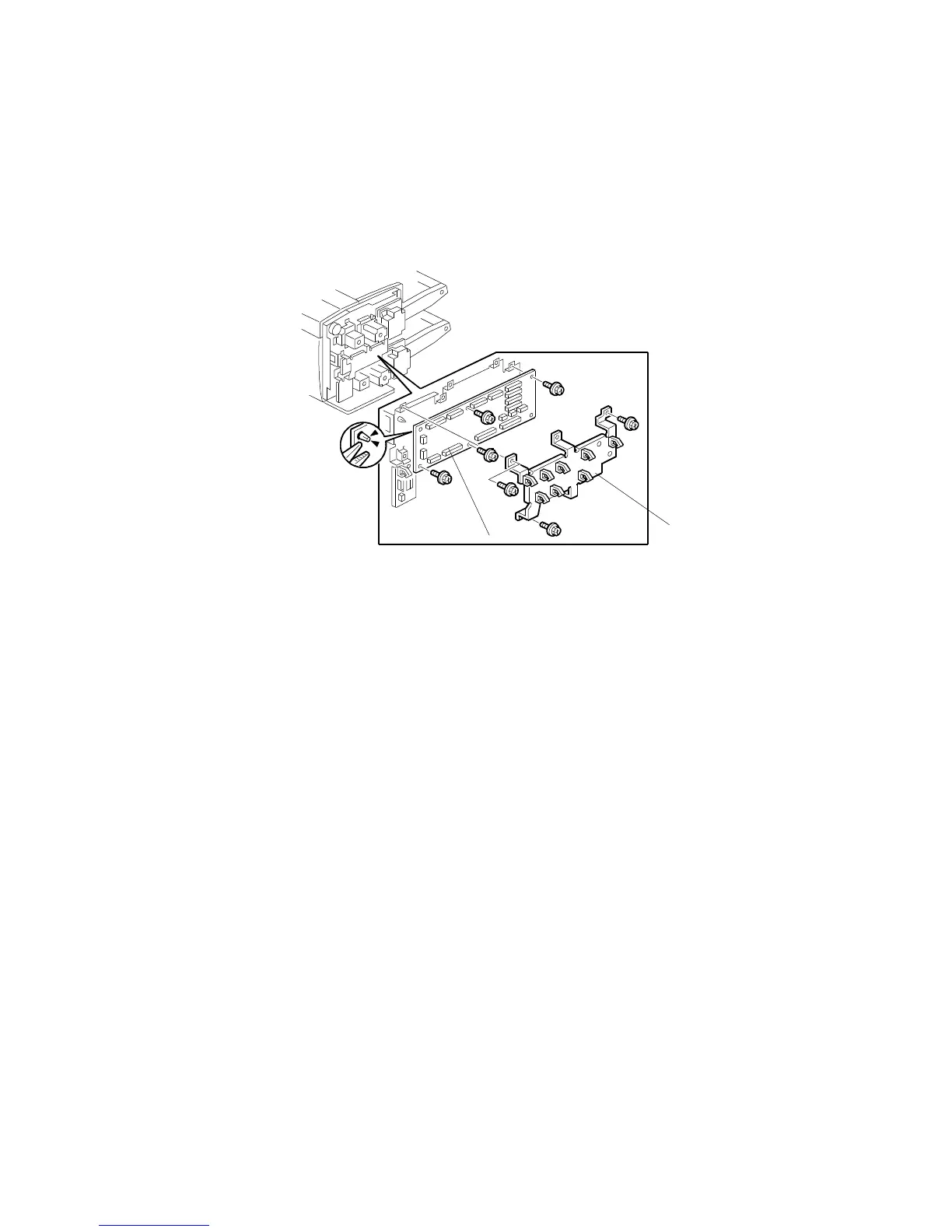

[A] Board cover (

x3,

x8)
[B] Tray unit control board (

x 17,

x5, Standoff x1)
B835R110.WMF
[A]
[B]
