Ricoh D014 - Sensors; Paper Width Switch, Set Sensors, Length Sensor

REPLACEMENT AND ADJUSTMENT
B835 14 SM
1.6 SENSORS
1.6.1 PAPER WIDTH SWITCH, SET SENSORS, LENGTH SENSOR

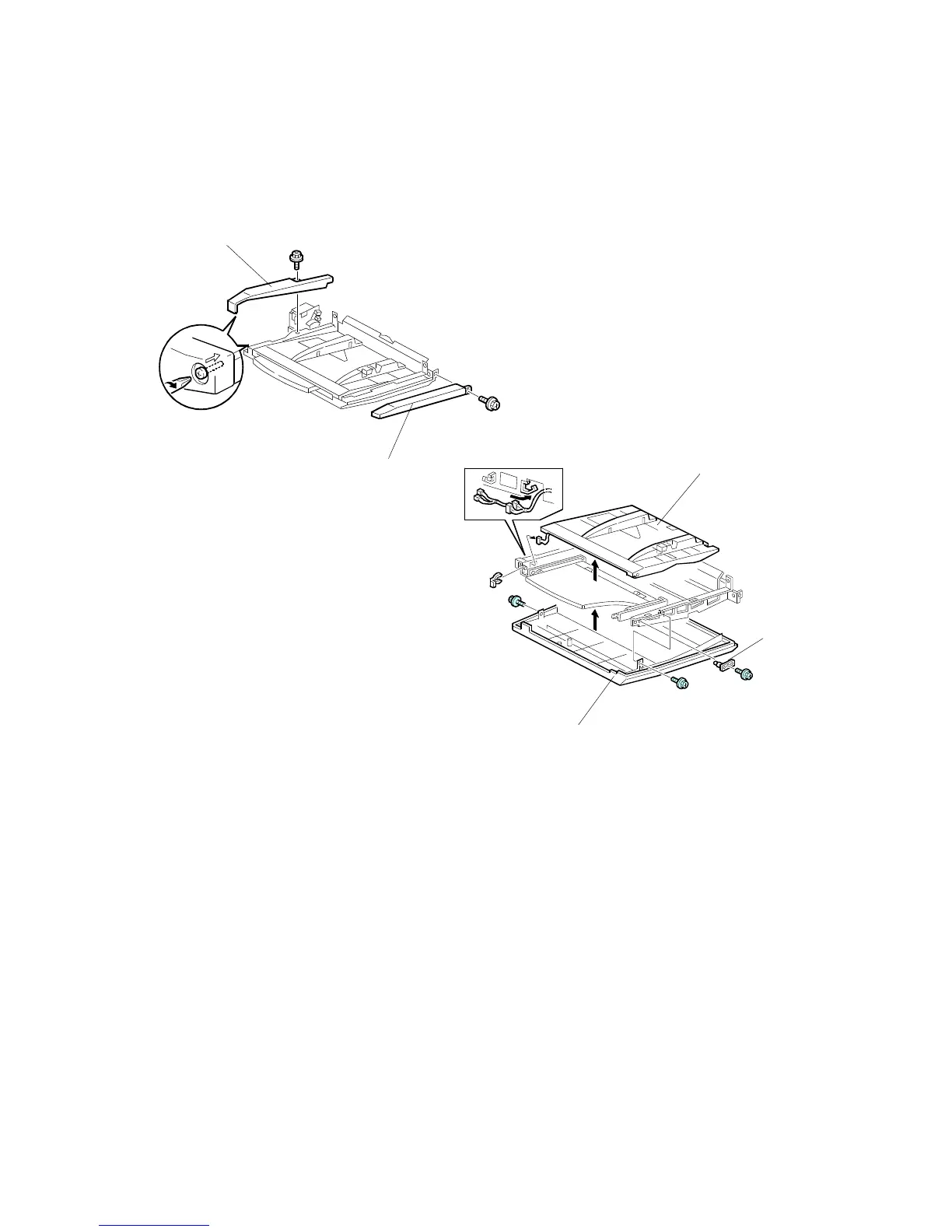

Remove:
• 1st or 2nd paper tray (

1.2)
[A] Front cover (

x1)
[B] Rear cover (

x1)
[C] Bottom cover (

x2)
[D] Holder pin (

x1, Spring x1)
[E] Bottom plate (

x1)
• Turn over the bottom plate so it is facing up.
B835R118B.WMF
B835R119.WMF
[A]
[B]
[C]
[D]
[E]
