REPLACEMENT AND ADJUSTMENT
SM 15 B835
Cover
Interposer
Tray
B835

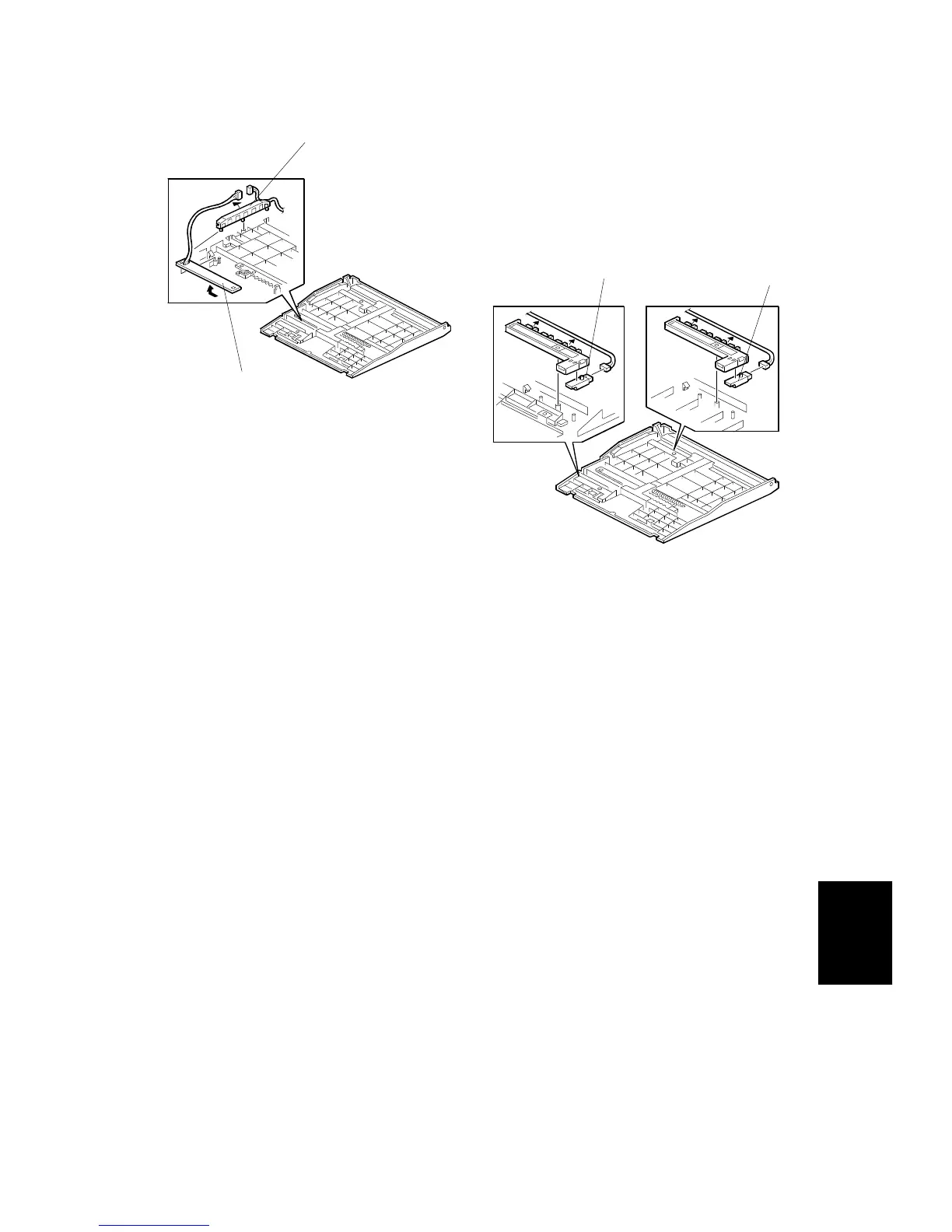

Remove:
[A] Harness cover (Hooks x2)
[B] Paper width switch (Hooks x2,

x4,

x1)
[C] Paper set sensor (Hook x1,

x1)
[D] Paper length sensor (Hooks x1,

x1)
B835R121.WMF
B835R120.WMF
[A]
[B]
[C]
[D]
