Ricoh D014 - Attaching the Trays

2000/3000 Sheet Finishers (D373/D374)
SM 1-81 D014/D015/D078/D079
Installation

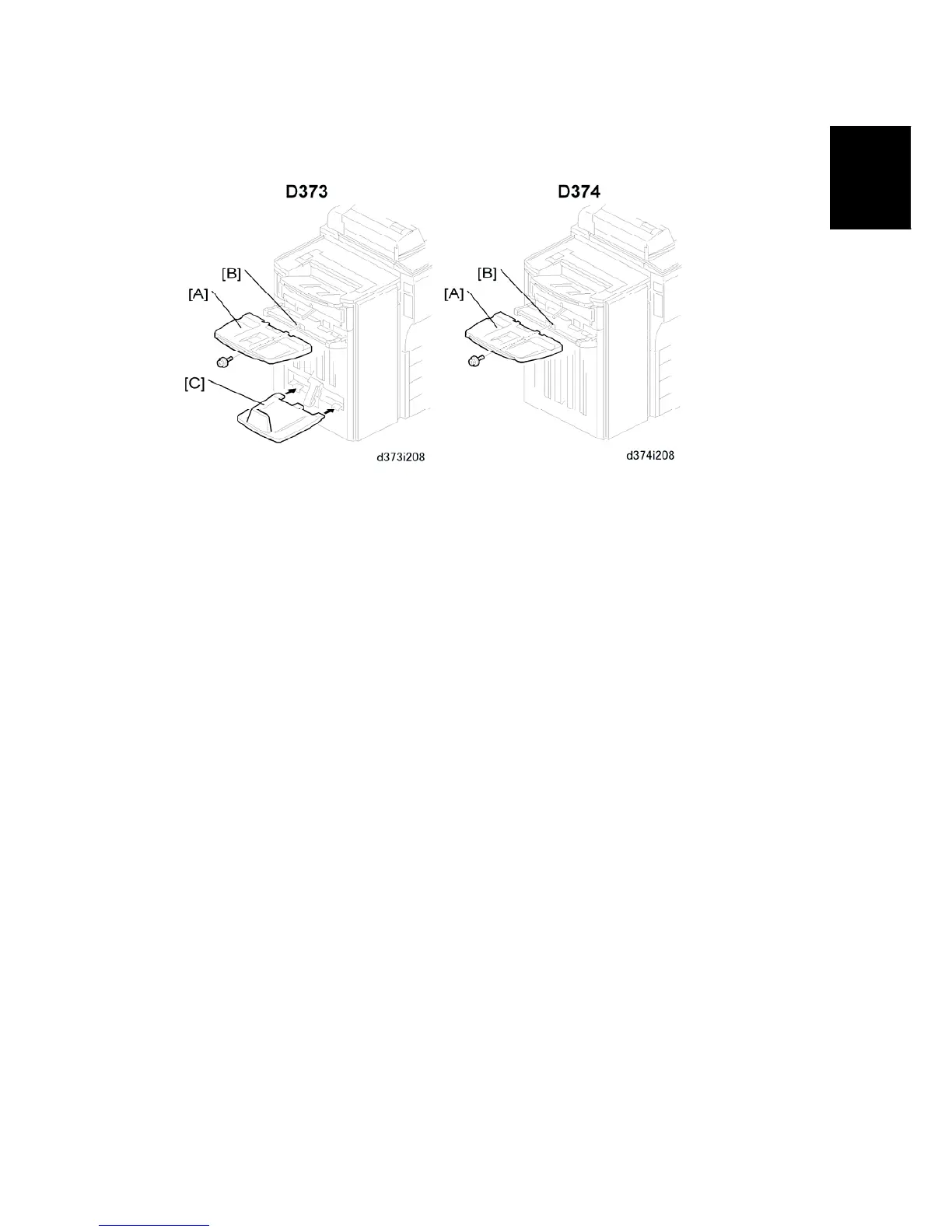

Attaching the Trays
D373
1. Attach the upper output tray [A] ( x 1, M3 x 6).
2. Make sure that the metal plate [B] is on the top of the tray.
3. Attach the lower output tray [C].
D374
1. Attach the output tray [A].
2. Make sure that the metal plate [B] is on the top of the tray.
