2000/3000 Sheet Finishers (D373/D374)
D014/D015/D078/D079 1-80 SM

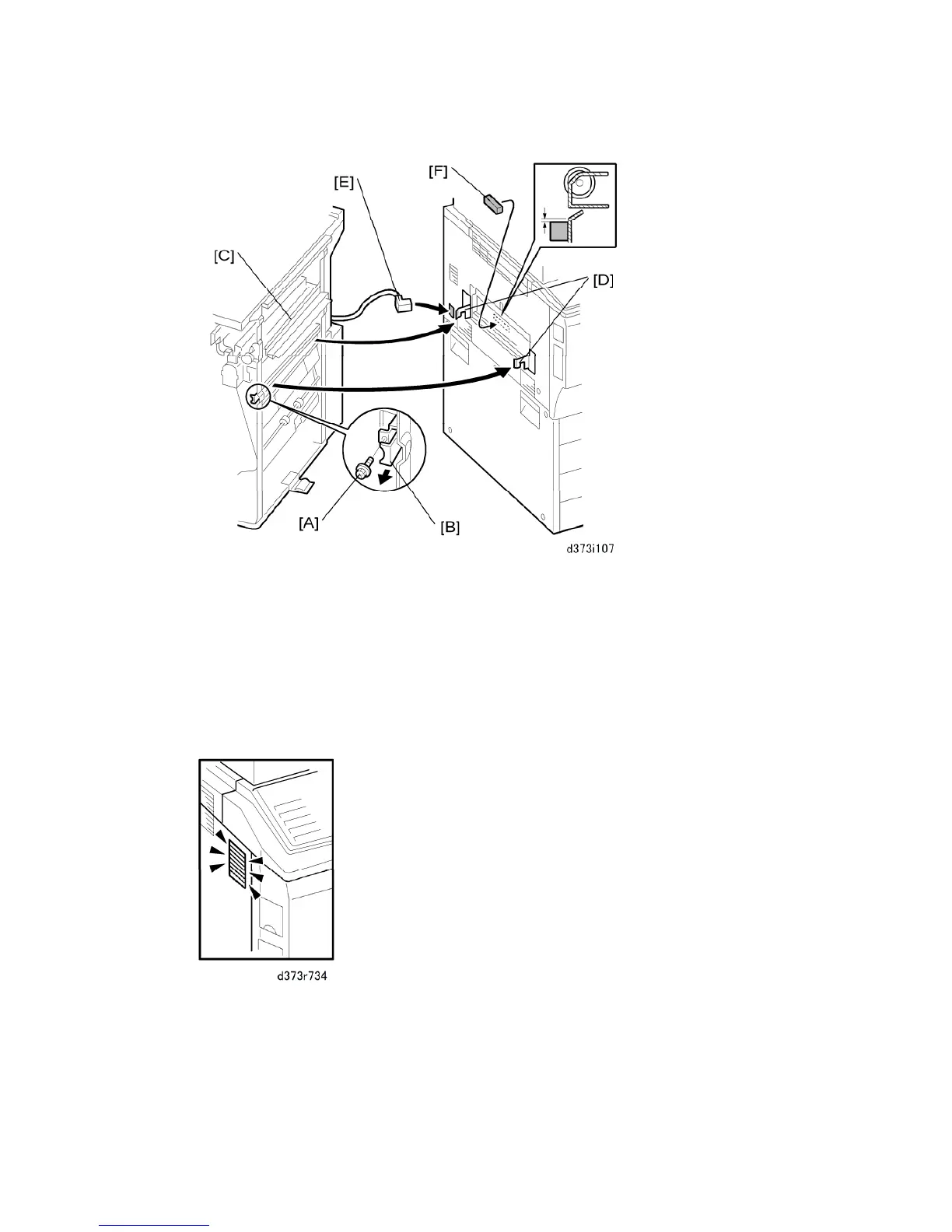

3. Remove the screw [A] to release the lock lever [B] ( x 1).
4. Slowly push the finisher against the side of the machine until the brackets [D] go into
their slots. If you do this too quickly, you will bend and cause damage to the
paper-entrance guide plates [C].
5. Attach and tighten the screw removed in Step 4.
6. Connect finisher connector [E] to the main frame.
7. Attach the gasket seal [F] as shown.
8. Check the duct on the left side of the machine shown above. Make sure that the
sponge does not block this duct.
