2000/3000 Sheet Finishers (D373/D374)
SM 1-79 D014/D015/D078/D079
Installation
If you will install the Cover Interposer B704:
Do not attach the sponge cushion to the finisher. It must be attached to the cover
interposer.
Do not attach the grounding plate [C] to the finisher. It must be attached to the cover
interposer.
Install the interposer on the finisher before you dock the finisher to the copier. (
Cover Interposer Tray (B704): do the complete procedure.) Then come back to the
procedure for the D373/D374 finisher, and continue from 'Attaching the Trays'.

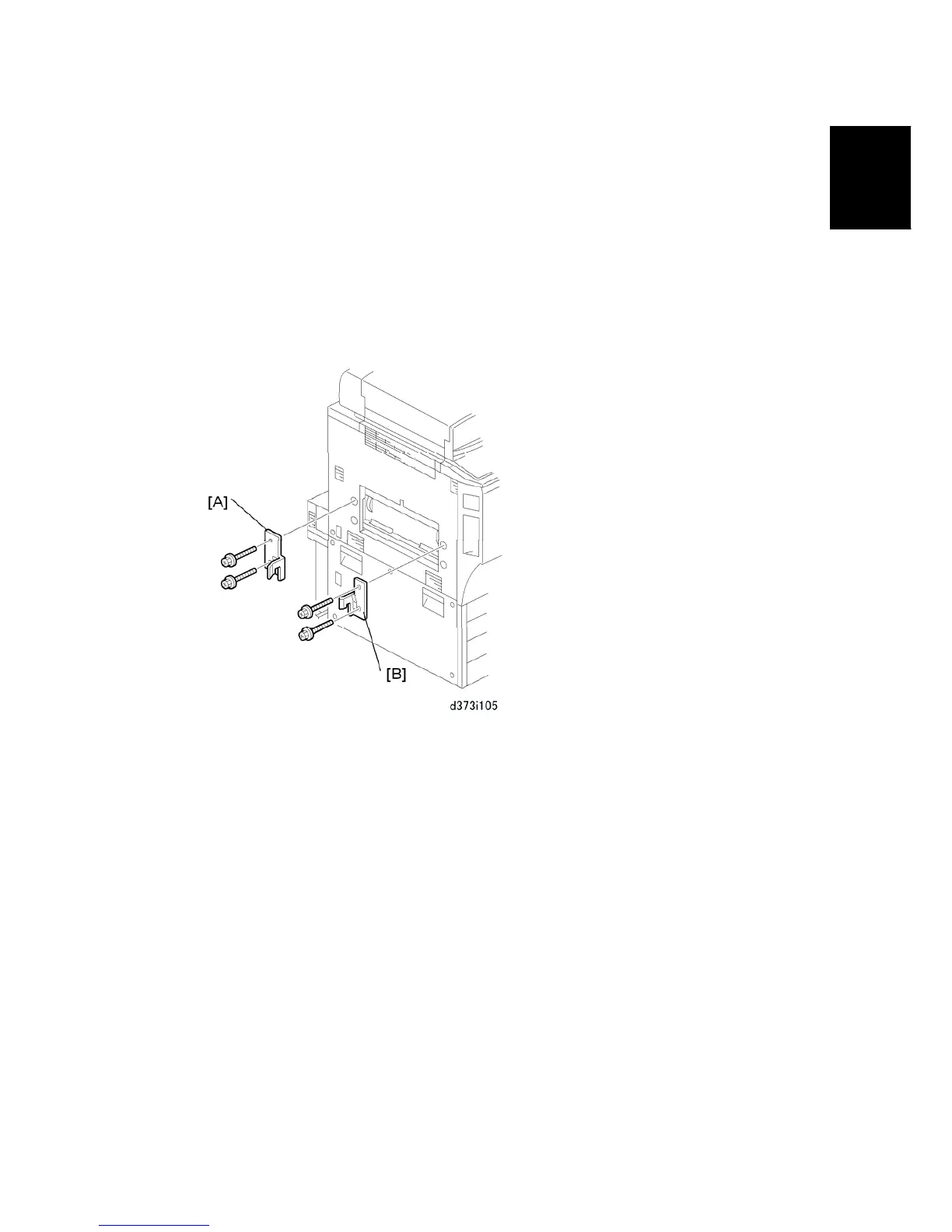

1. Attach the rear bracket [A] ( x 2, M4 x 14).
2. Attach the front bracket [B] ( x 2, M4 x 14).
