Ricoh D014 - 1 St, 2 Nd Trays

REPLACEMENT AND ADJUSTMENT
B835 4 SM
1.2 1ST, 2ND TRAYS
Remove:
• Inner cover with tray unit front door (

1.1)
• Tray unit rear cover (

1.1)

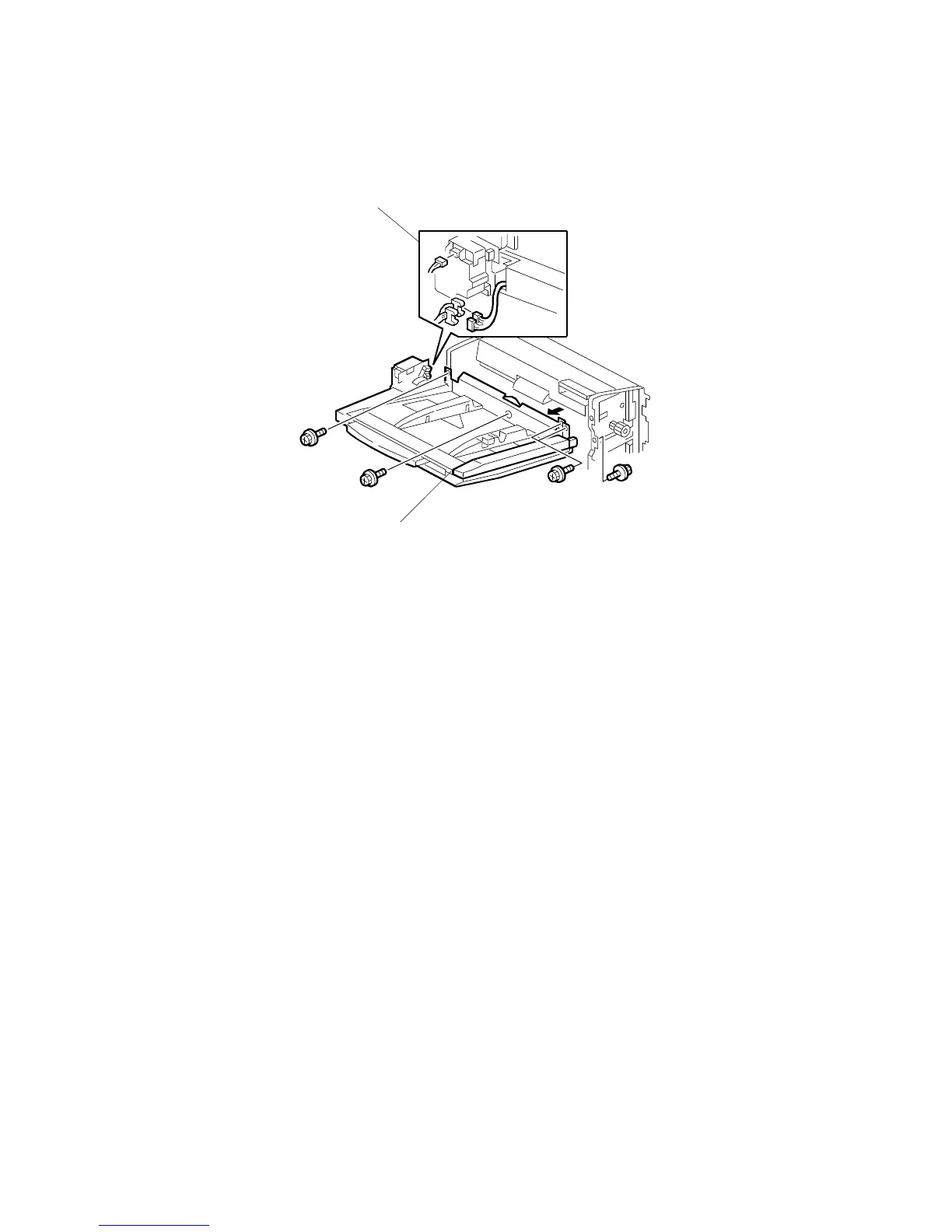

1st Tray
[A] Disconnect:
• 1st lift motor (

1x,

x1)
• White connectors (

x2)
[B] 1st tray ( x5)
2nd Tray
Remove:
• Inner cover with tray unit front door (

1.1)
• Tray unit rear cover (

1.1)
[C] Disconnect:
• 2nd lift motor (

1x,

x1)
• Red, blue connectors (

x2)
[D] 2nd tray (

x5)
B835R118A.WMF
[A], [C]
[B], [D]
