REPLACEMENT AND ADJUSTMENT
SM 3 B835
Cover
Interposer
Tray
B835

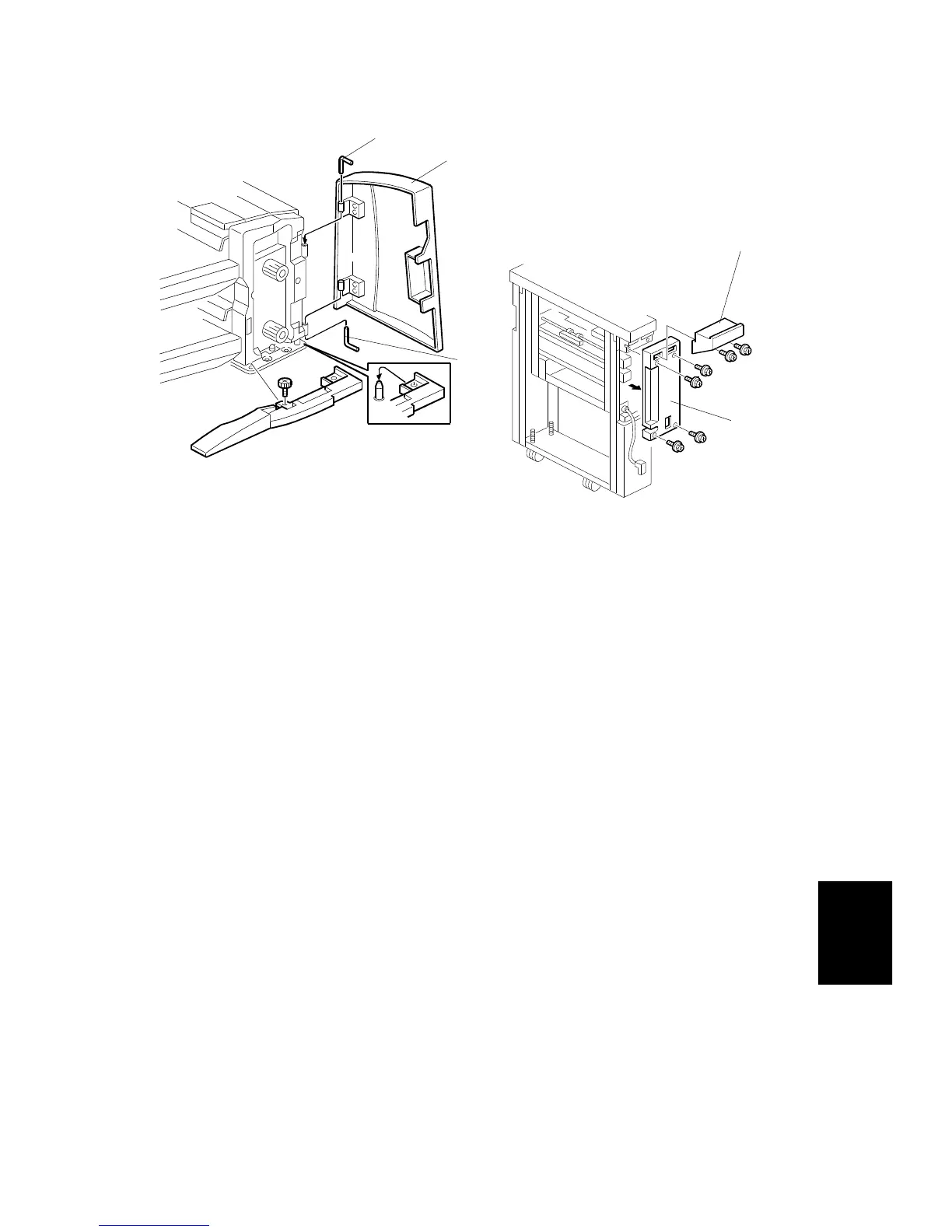

3. Remove:
[A] Front door (L-pins x2)
• Swing the upper L-pin [B] out of its groove and pull it up.
• Swing the lower L-pin [C] out of its groove and pull it down.
[D] Rear top cover of the feed unit (
x2)
[E] Feed unit rear upper cover (
x4)
B835I113.WMF
B835R124.WMF
[A]
[B]
[C]
[D]
[E]
