REPLACEMENT AND ADJUSTMENT
B835 2 SM

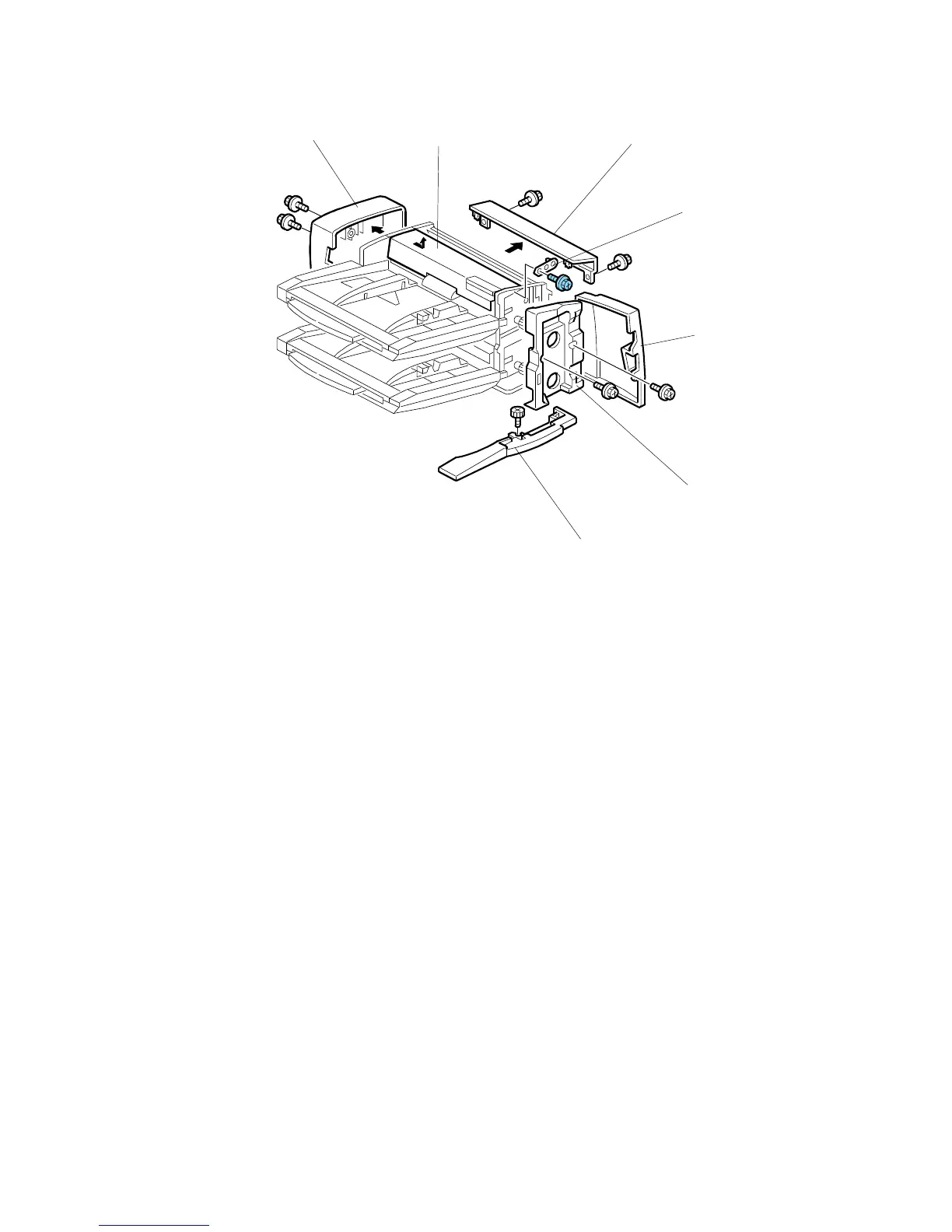

2. Remove:
[A] Top cover (

x2)
[B] Inner cover with front door [C] (

x2)
[D]1st tray cover holder (

x1)
[E] 1st tray cover. Slide the cover toward you to remove it from the inside pins.
[F] Base cover (Knob

x1)
[G]Tray unit rear cover (

x2)
B835R105.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
