REPLACEMENT AND ADJUSTMENT
B835 10 SM
1.5.3 1ST, 2ND LIFT MOTORS
• Tray unit rear cover (
1.1)
[A] 1st lift motor (
x2,
x1)
[B] 2nd lift motor (
x2,
x1)

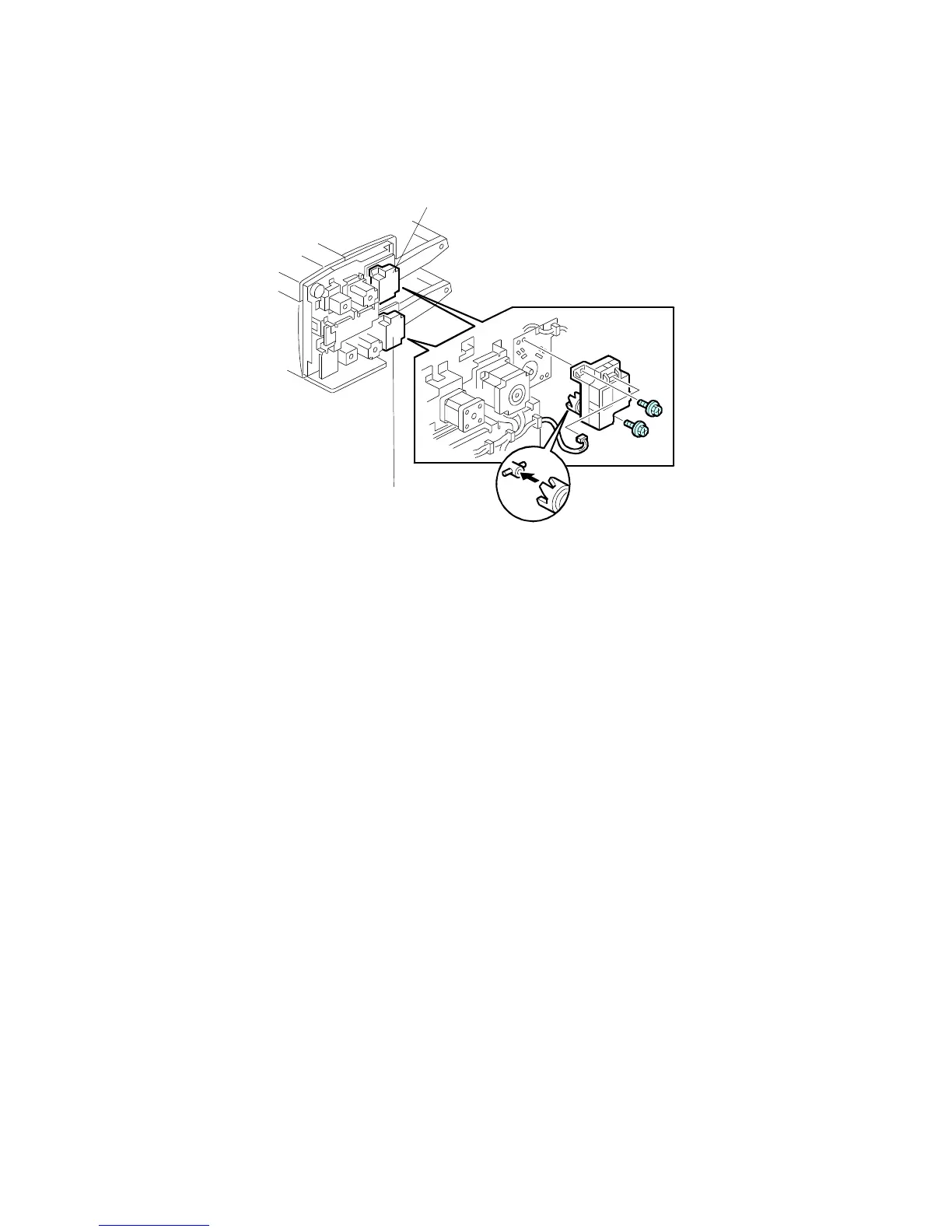

B835R109.WMF
[A]
[B]
CÓPIA NÃO CONTROLADA
CÓPIA NÃO CONTROLADA
