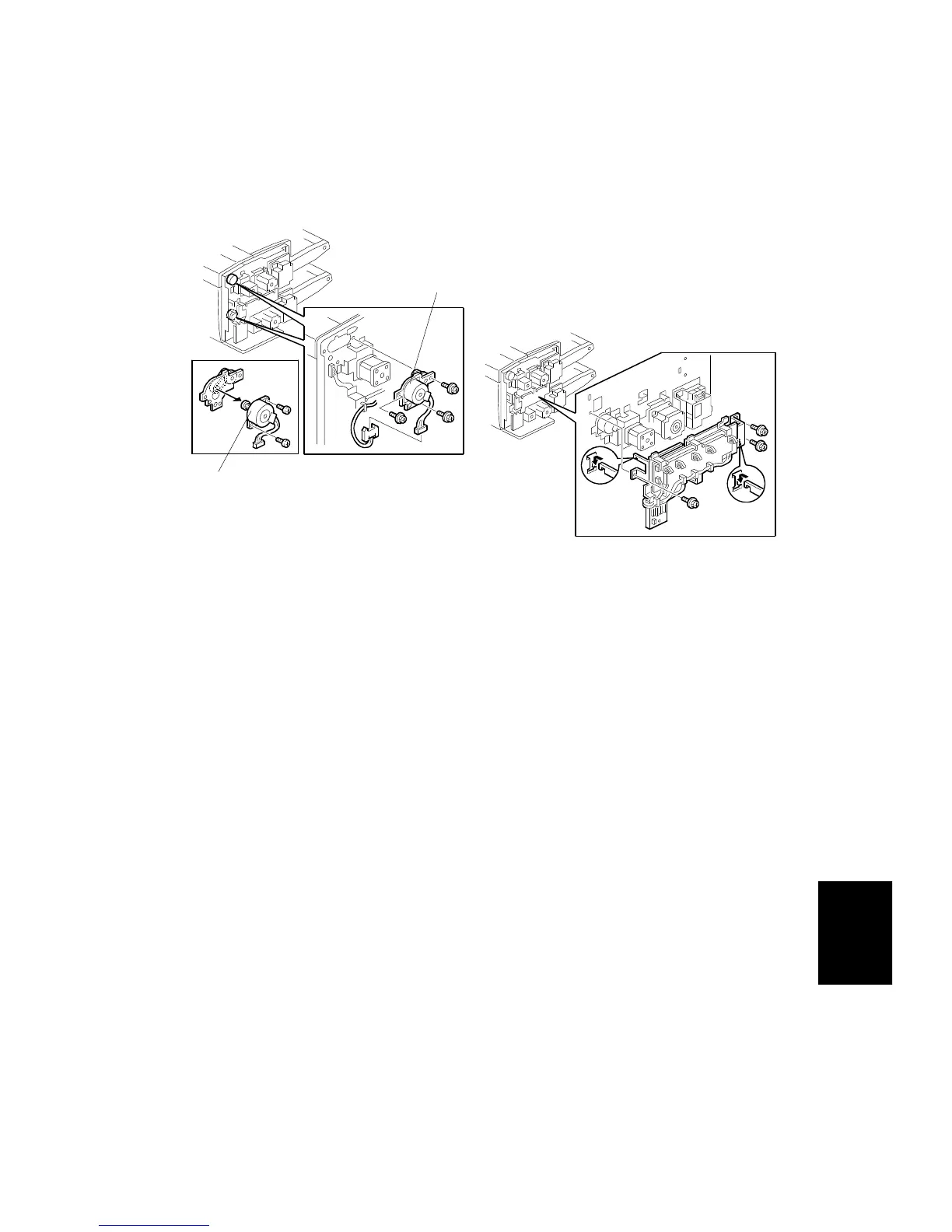

1.5.6 1ST, 2ND PICK-UP MOTORS
• Tray unit rear cover (

1.1)
1st Pick-up Motor
[A] 1st pick-up motor unit (

x1,

x3)
[B] 1st pick-up motor (

x2, Timing belt x1)
2nd Pick-up Motor

Tray unit control board unit (Hooks,

x3,

x9 (Motor x8, CN216))
[C] 2nd pick-up motor unit (

x1,

x3)
[D] 2nd pick-up motor (

x2, Timing belt x1)
B835R106.WMF
B835R111.WMF

[A], [C]
[B], [D]
