Ricoh D014 - Stapler

REPLACEMENT AND ADJUSTMENT
B830 18 SM
1.5 STAPLER
1. Open the front door and pull out the staple tray.
2. Remove the stapler unit harness cover [A] ( x 2).
3. Lift the stapler [B] off of its pegs (

x 2)
4. Remove plate [C] (

x 2).
5. Attach this plate to the new stapler with the
same screws (

x 2)
6. Replace the frame guard [D] with the one
provided with the new stapler.

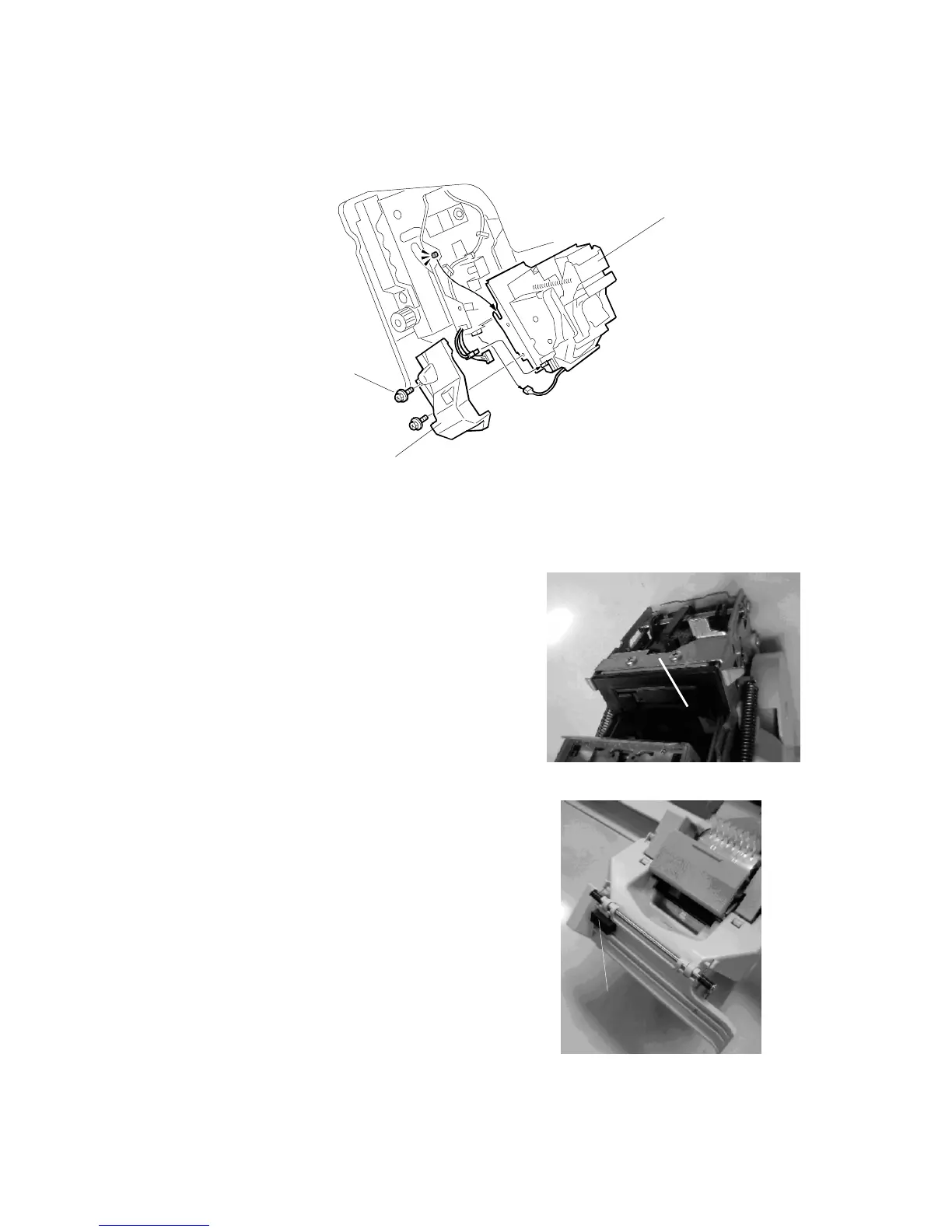

B830R518.WMF
[A]
[B]
[C]
[D]
