3.5.3 PTR UNIT

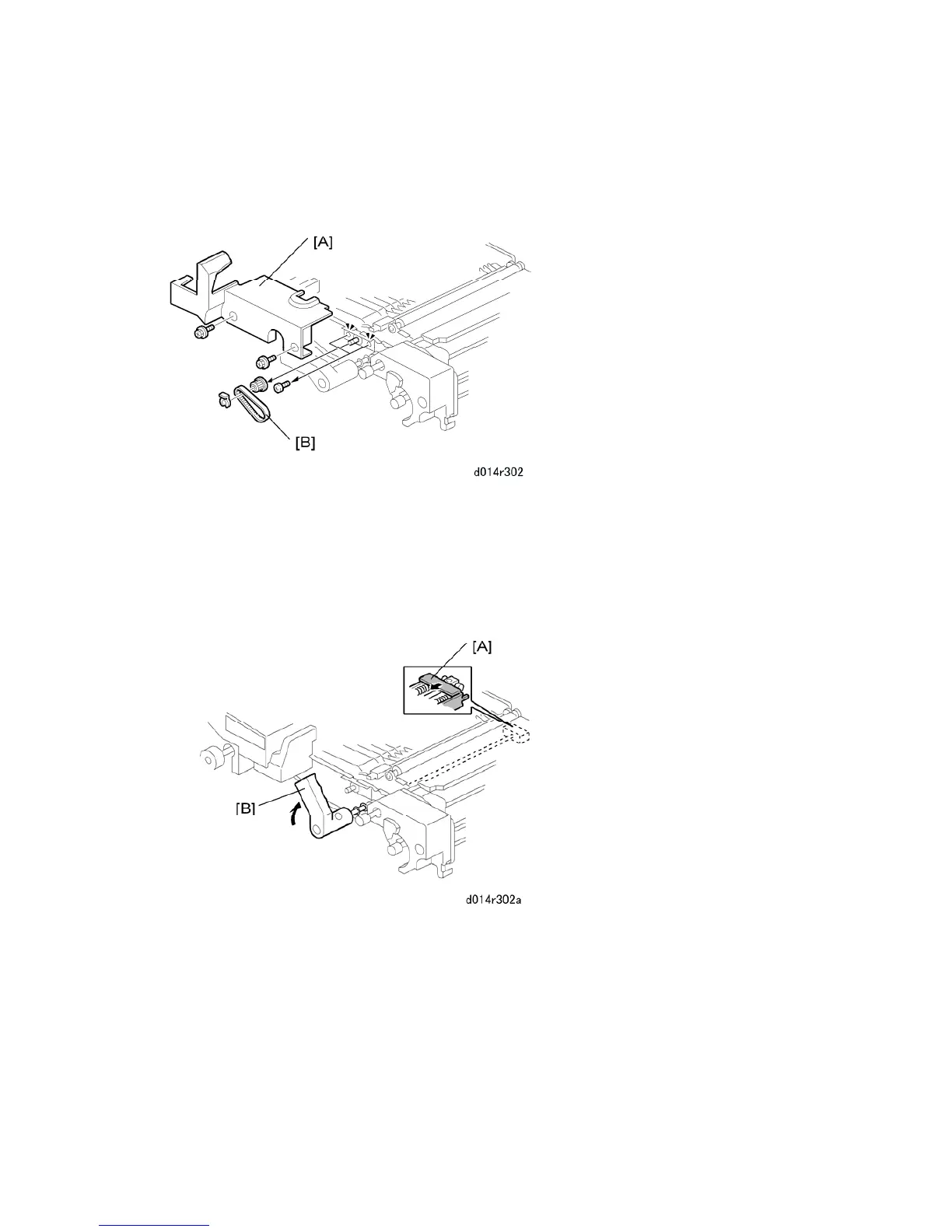

1. Pull out the drawer unit.
2. Remove:
[A] Paper transport unit cover ( x2)
[B] Timing belt, gear ( x1)
 Do not loosen or remove the paint-locked screws.
3. Remove:
[A] Press the release forward
[B] Raise the handle to the vertical position.
