PTR Unit
SM 3-67 D014/D015/D078/D079
Replacement
Adjustment

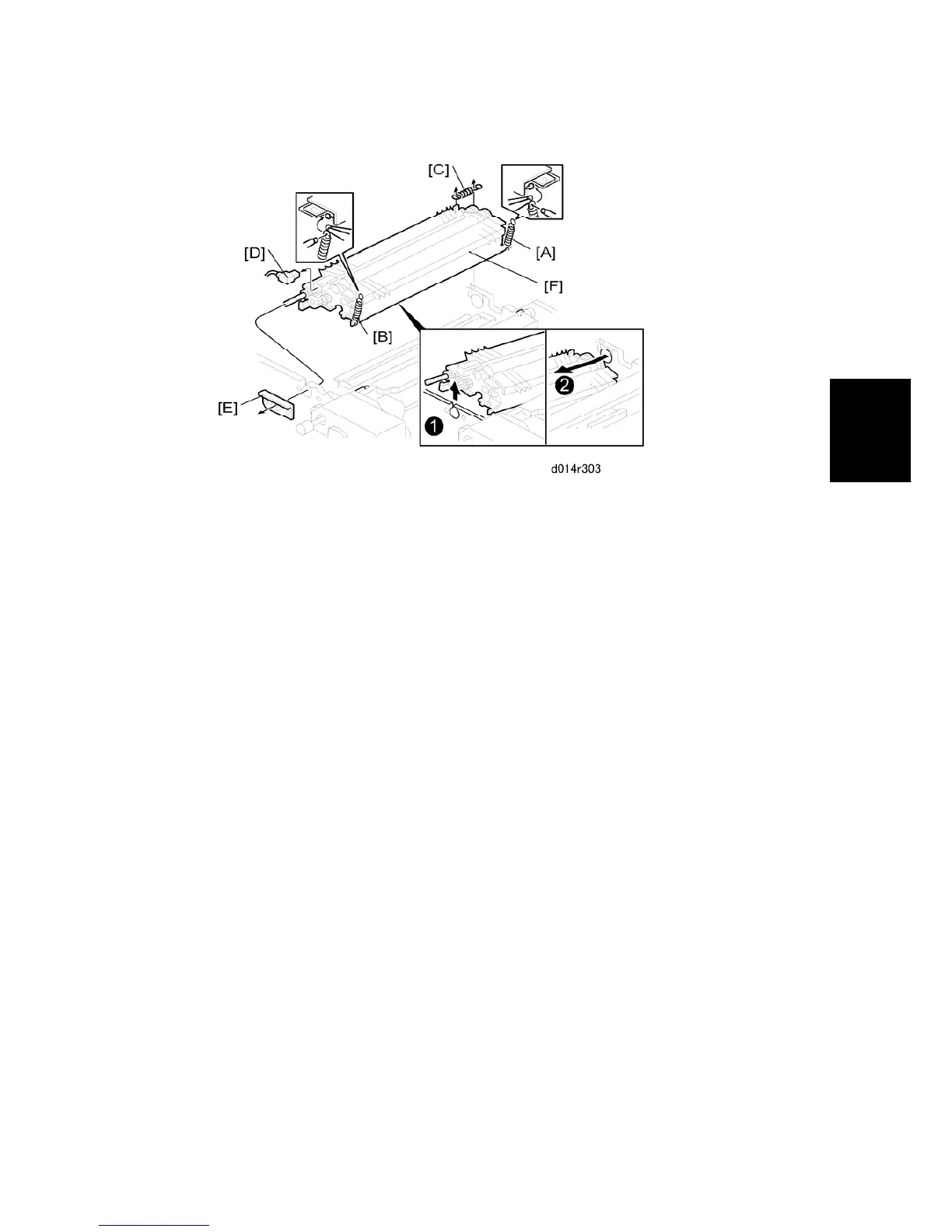

4. Change the position of:
[A] Spring
[B] Spring
5. Remove:
[C] Spring
[D] Connector ( x1) (use a pair of small pliers to remove the connector)
[E] Bracket ( x2)
[F] PTR Unit
The handle should be up.
Raise the front {.
Pull the rear .
Reinstallation
Be sure to set springs [A], [B], and [C] in their original positions before you re-install the
PTR Unit.
Do the forced MUSIC adjustment with SP 2111 001.
