Ricoh D014 - VBCU Replacement

Boards
D014/D015/D078/D079 3-112 SM
VBCU Replacement

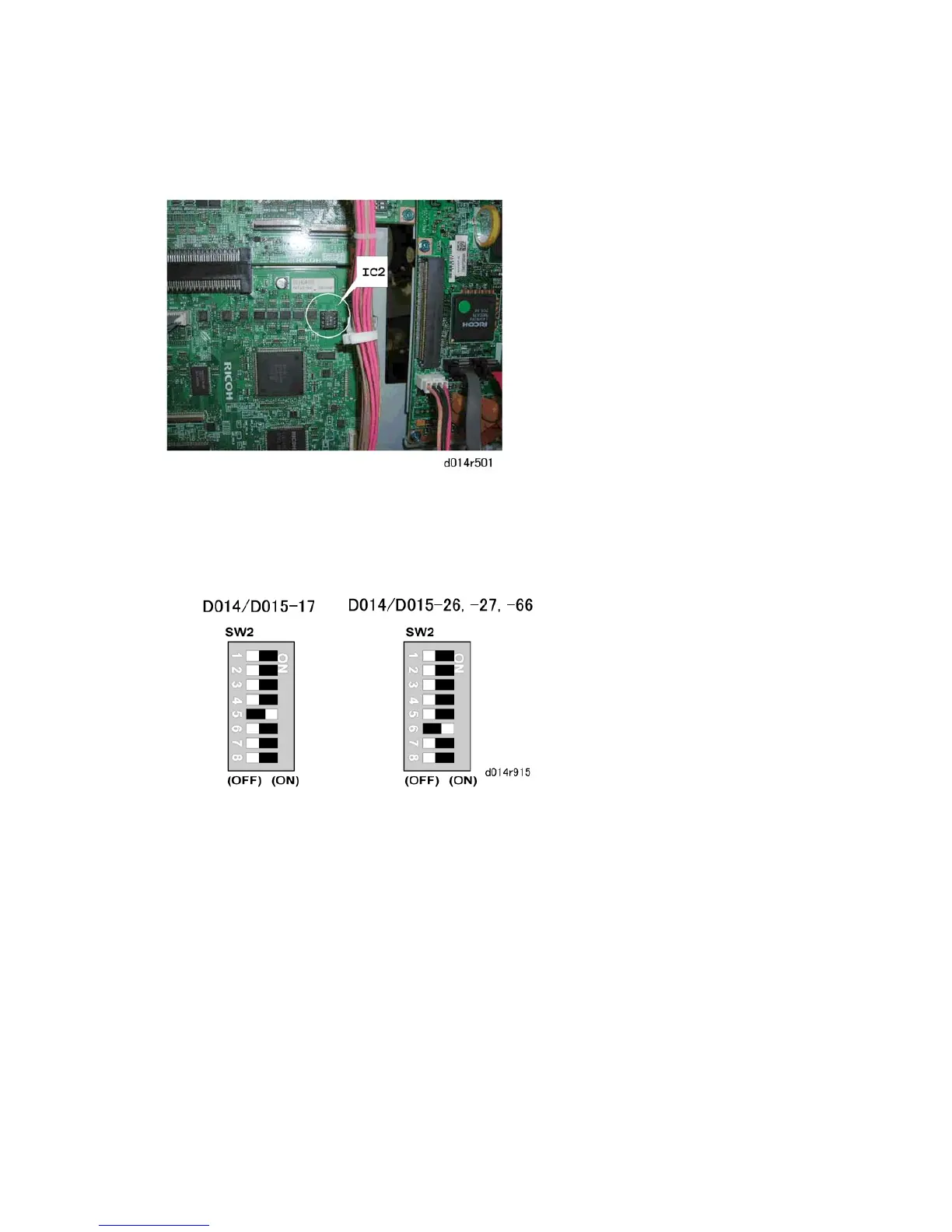

1. Remove the EEPROM from the old VBCU. (The EEPROM shown above is marked
"IC2" with a notation on the board.)
2. Install the EEPROM on the new VBCU.
3. Set the DIP SW (SW2) for the machine as shown below.
