Ricoh D014 - Registration Motor

PTR Unit
SM 3-73 D014/D015/D078/D079
Replacement
Adjustment
3.5.9 REGISTRATION MOTOR

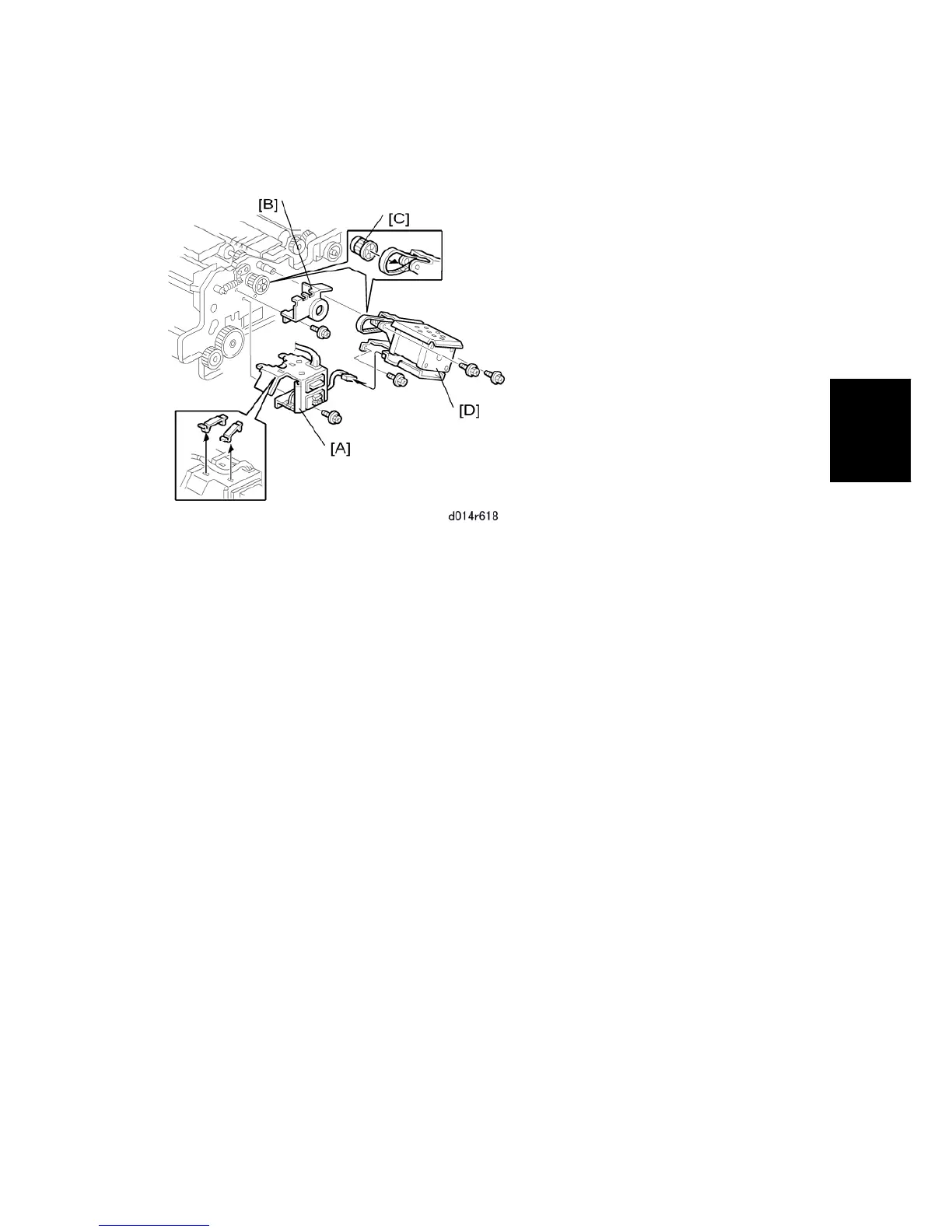

1. Remove:
 Drawer unit
[A] Drawer unit connector bracket ( x1,  x3, = x2)
[B] Gear cover ( x1)
[C] Registration gear ( x1, Spring pin x1)
[D] Registration motor assembly ( x3,  x1)
Reinstallation
 Do the forced MUSIC adjustment with SP 2111 001
