Ricoh D014 - Grounding and Preparing the LCT for Docking; Lct Installation

LCIT RT4000 (D350)
D014/D015/D078/D079 1-64 SM
1.9.2 LCT INSTALLATION
Grounding and Preparing the LCT for Docking

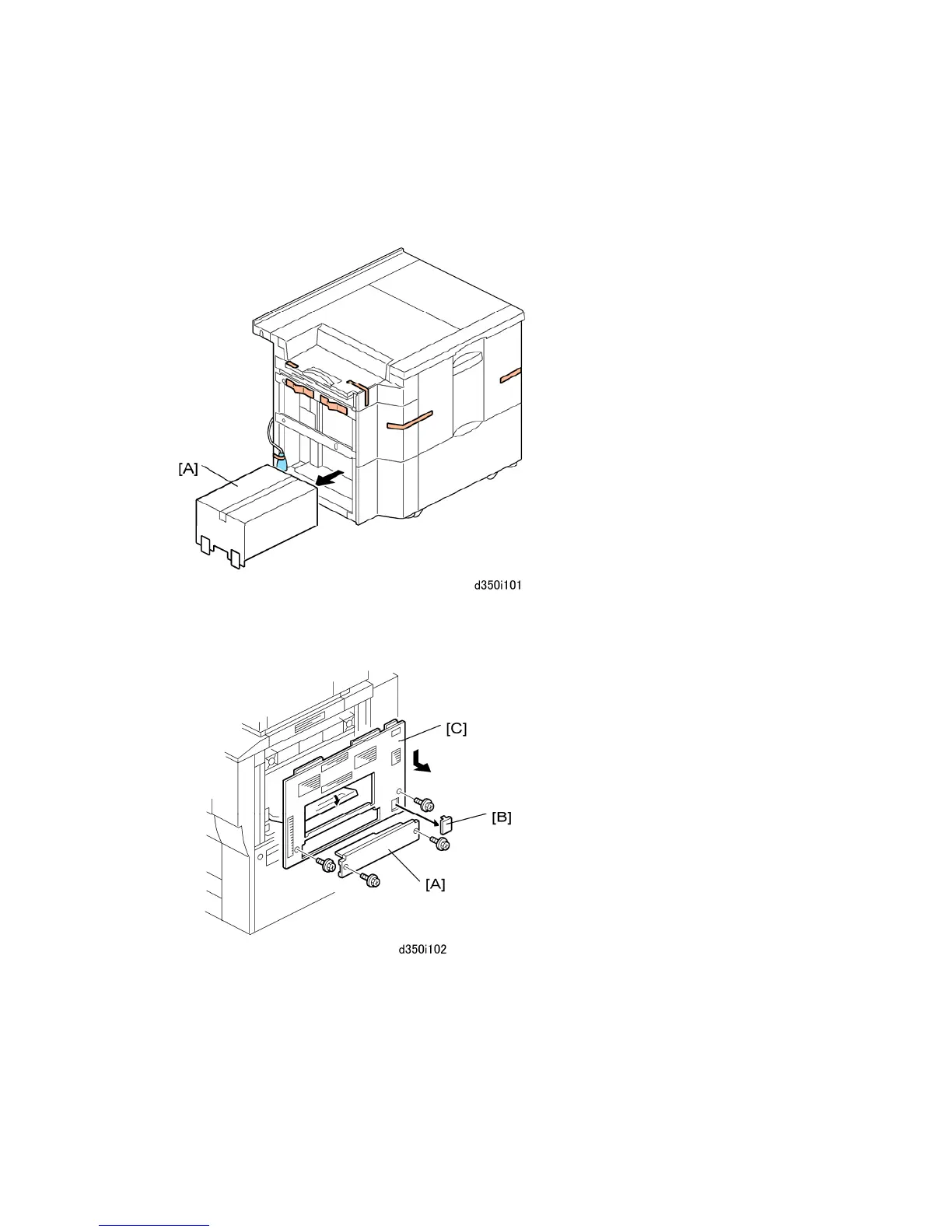

1. Remove the accessory box [A] from inside the LCIT.
2. Remove all tapes.
3. Remove the paper entrance cover [A] ( x2).
4. Remove the connector cover [B].
5. Remove the right upper cover [C] ( x2).
