LCIT RT4000 (D350)
SM 1-65 D014/D015/D078/D079
Installation

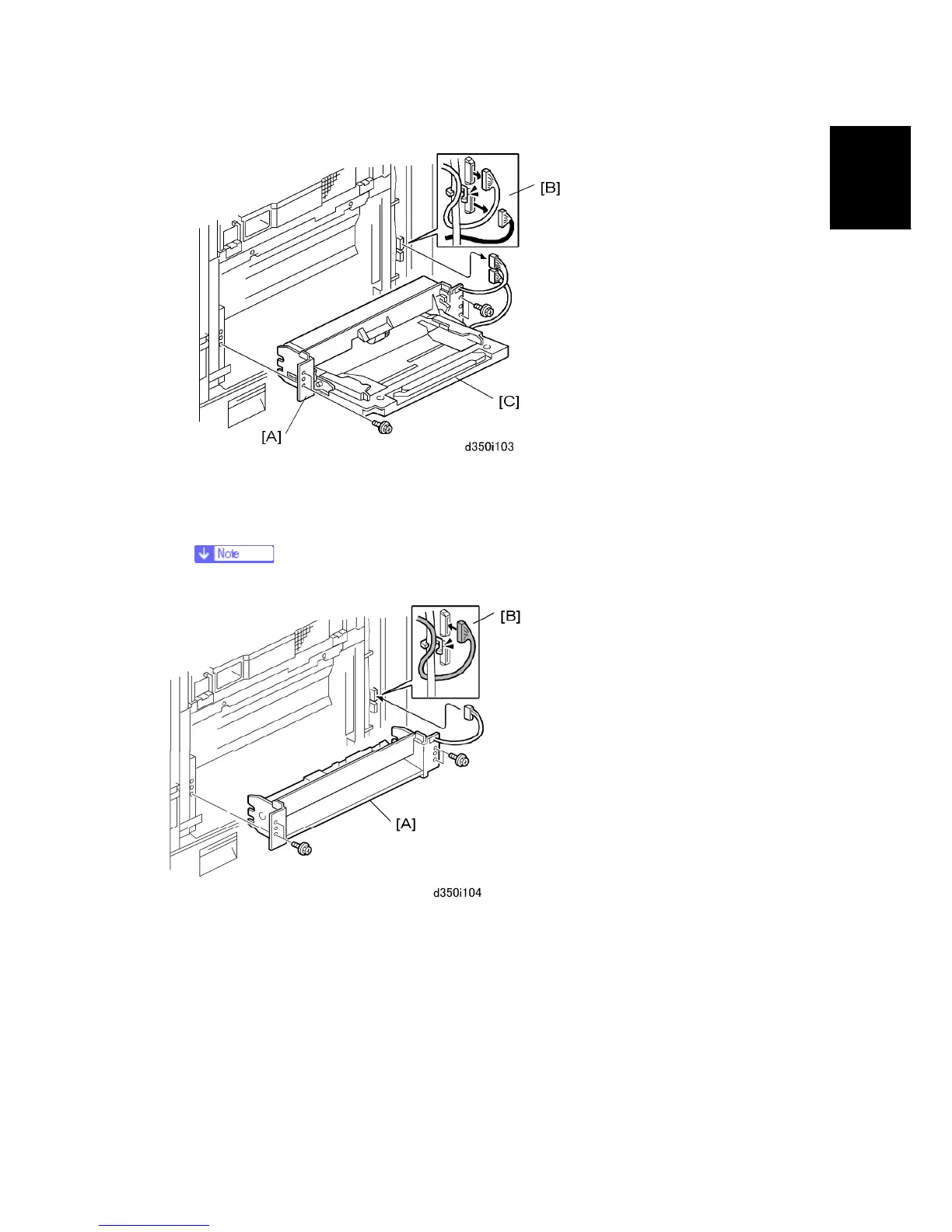

6. Remove the plate [A] ( x2).
7. Disconnect the bypass unit connectors [B] ( x2).
8. Remove the bypass unit [C] (keep the screws) (x4).
Do not throw away the bypass tray. The customer may need it again later.
1. Use the screws removed with the bypass tray to attach the relay unit [A] (x4).
2. Connect the relay harness [B] ( x1).
To Next Page
