REPLACEMENT AND ADJUSTMENT

SM 19 B835

Cover

Interposer

Tray

B835

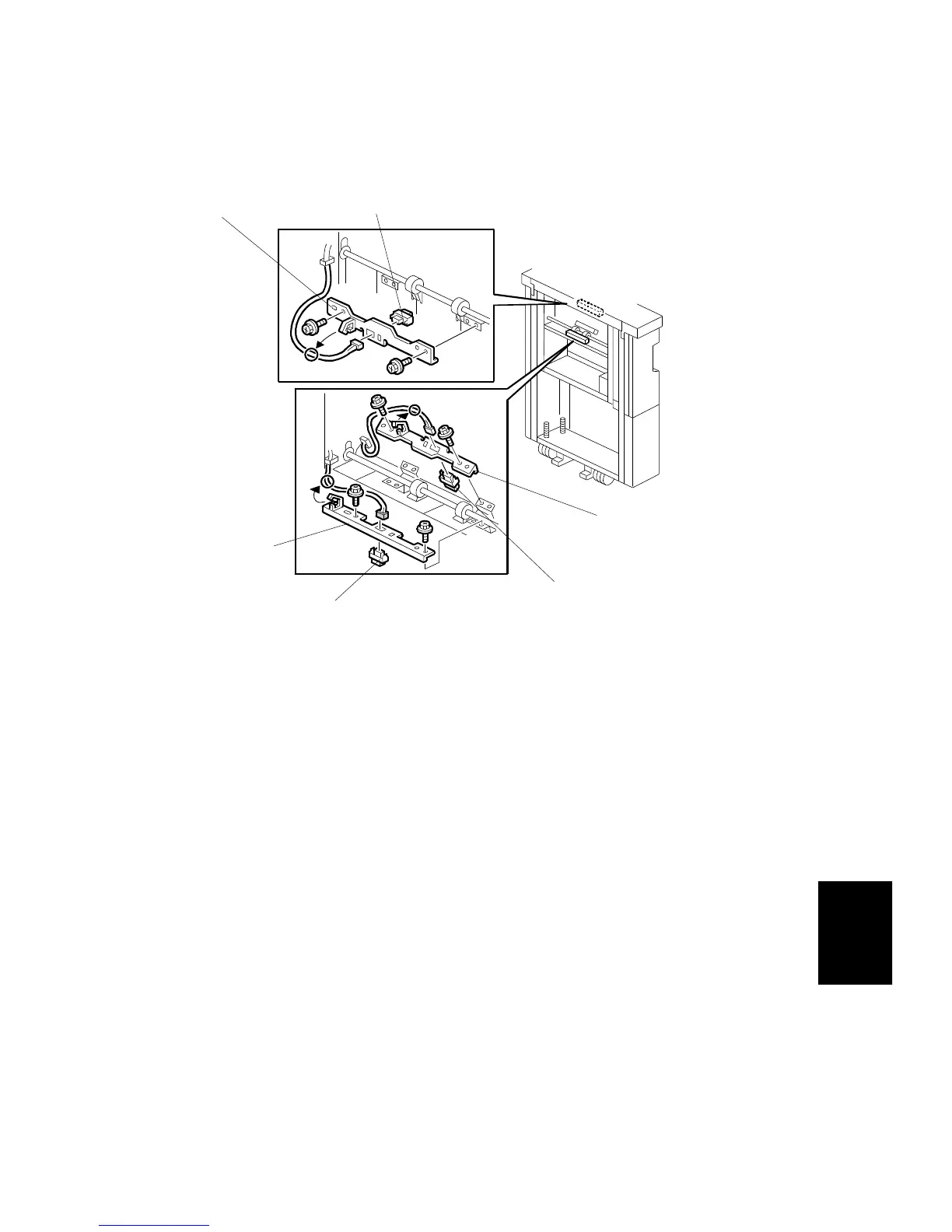

1.6.5 2ND VERTICAL TRANSPORT, EXIT SENSORS

Remove:

[A] Sensor unit (



x1,



x1,



x1)

[B] 2nd vertical transport sensor (Pawls x2)

[C] Sensor unit (



x2,



x1,



x1)

[D] Vertical exit sensor (Pawls x2)

[E] Sensor unit (



x2,



x1,



x1)

[F] Exit sensor (Pawls x2)

B835R123.WMF

[A]

[B]

[C]

[D]

[E]

[F]
