Ricoh D014 - Entrance and Stapler Tray Entrance Sensors; Entrance Sensor; Stapler Tray Entrance Sensor

REPLACEMENT AND ADJUSTMENT
SM 13 B830
Finisher
B830

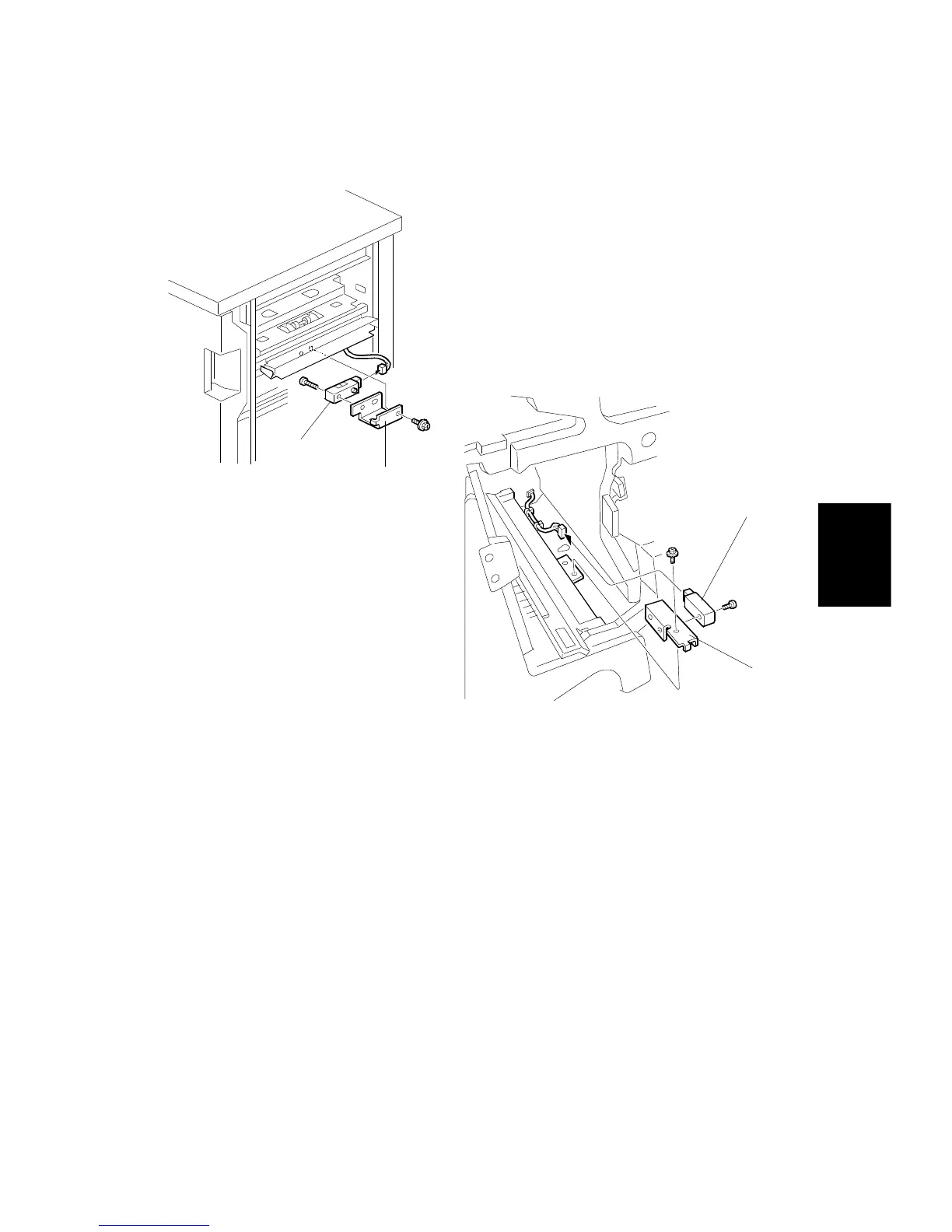

1.4.5 ENTRANCE AND STAPLER TRAY ENTRANCE SENSORS
Entrance Sensor
1. Disconnect the finisher from the copier.
2. Remove the sensor bracket [A] (

x 1).
3. Replace the entrance sensor [B] (

x 1) (

x 1).
Stapler Tray Entrance Sensor
1. Open the front door.
2. Remove the sensor bracket [C] (

x 1).
3. Replace the stapler tray entrance sensor [D] (

x 1)(

x 1).
B830R985.WMF
B830R986.WMF
[B]
[A]
[D]
[C]
