Ricoh D014 - Laser Synchronization Detector

Laser Unit
D014/D015/D078/D079 3-32 SM
3.3.5 LASER SYNCHRONIZATION DETECTOR

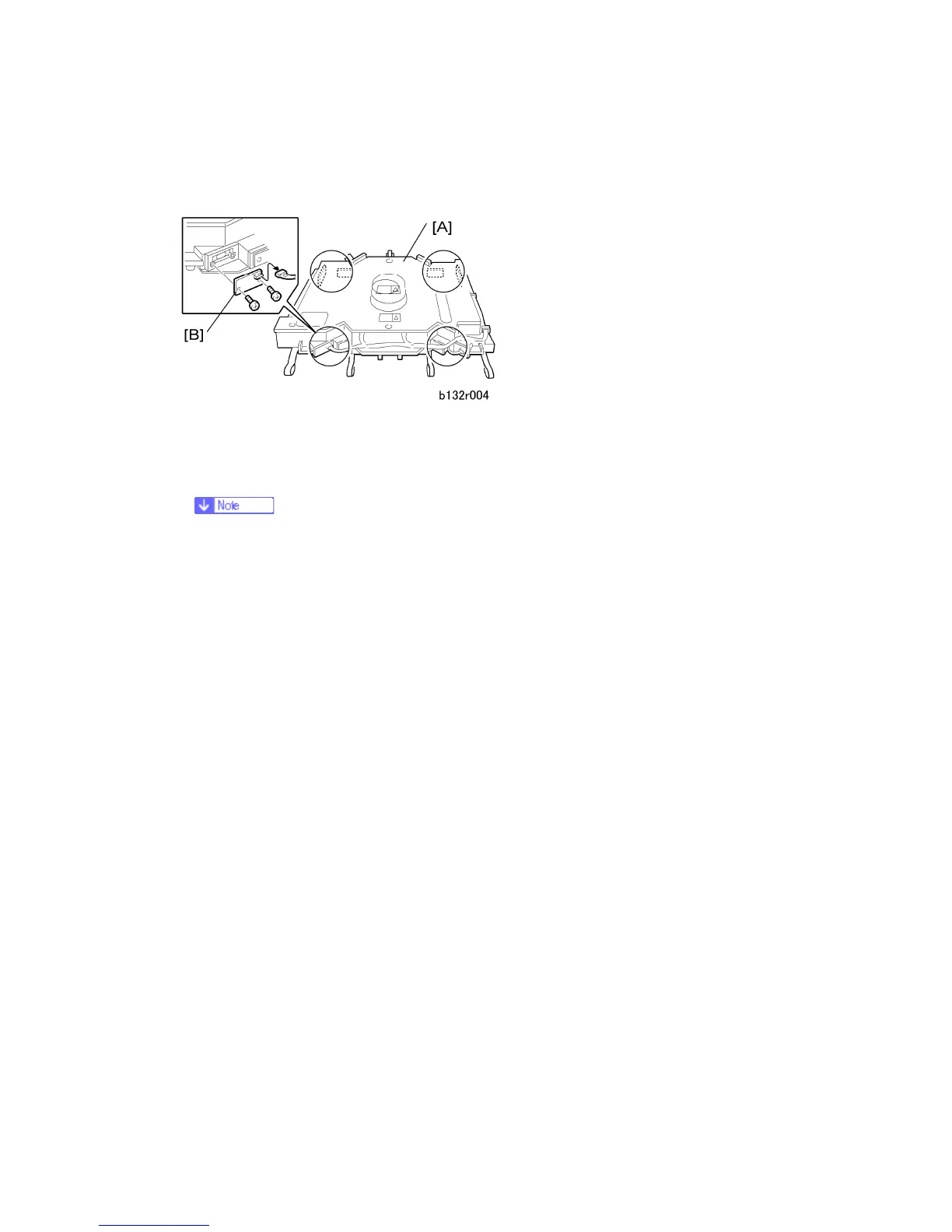

1. Remove:
[A] Laser unit
[B] Laser synchronization detector ( x2,  x1)
 The locations of the 8 laser synchronization detectors are circled in the
illustration above.
