Ricoh D014 - Motors; Vertical Transport Motor

REPLACEMENT AND ADJUSTMENT
B835 8 SM
1.5 MOTORS

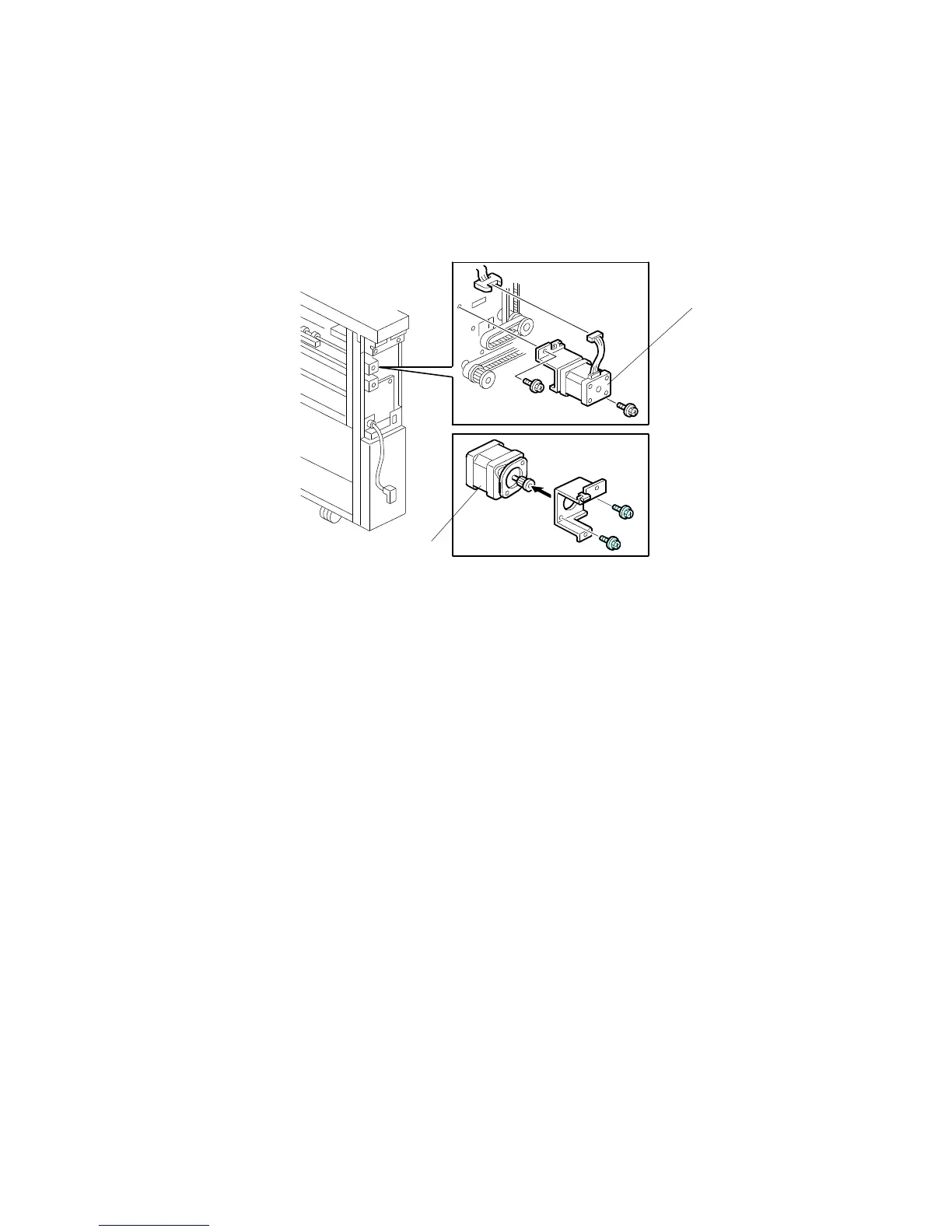

1.5.1 VERTICAL TRANSPORT MOTOR
Remove:
• Transport unit rear cover (

1.1)
[A] Motor unit (

x2,

x1, Timing belt x1)
[B] Vertical transport motor (

x2)
B835R125.WMF
[A]
[B]
