Motors
SM 3-129 D014/D015/D078/D079
Replacement
Adjustment

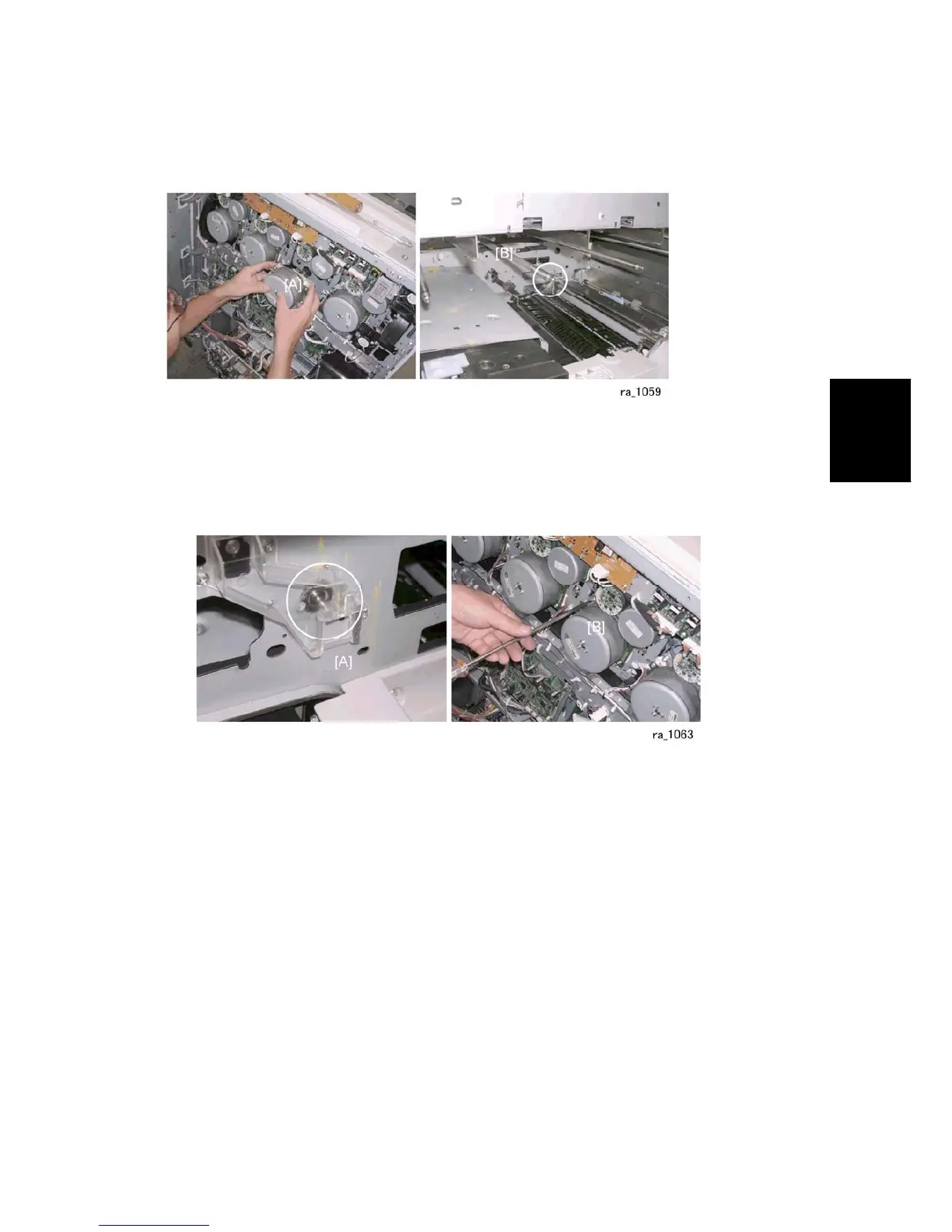

Drum Motor Reinstallation
1. Push the shaft into the machine and set the motor [A], so that it is straight.
2. Attach the screws and tighten them only halfway. This leaves the motor shaft loose so
it can float slightly.
3. Check the front of the machine and confirm that the shaft [B] is straight.
4. At the front, set the faceplate set the shaft [A] as shown above.
5. Fasten the faceplate with its screws ( x3).
6. At the back, tighten the screws ( x3) of the drum motor [B] and attach its connector
( x1).
