Ricoh D014 - Development Unit

Photoconductor Units (PCU)
SM 6-27 D014/D015/D078/D079
Detailed
Descriptions
6.6.7 DEVELOPMENT UNIT

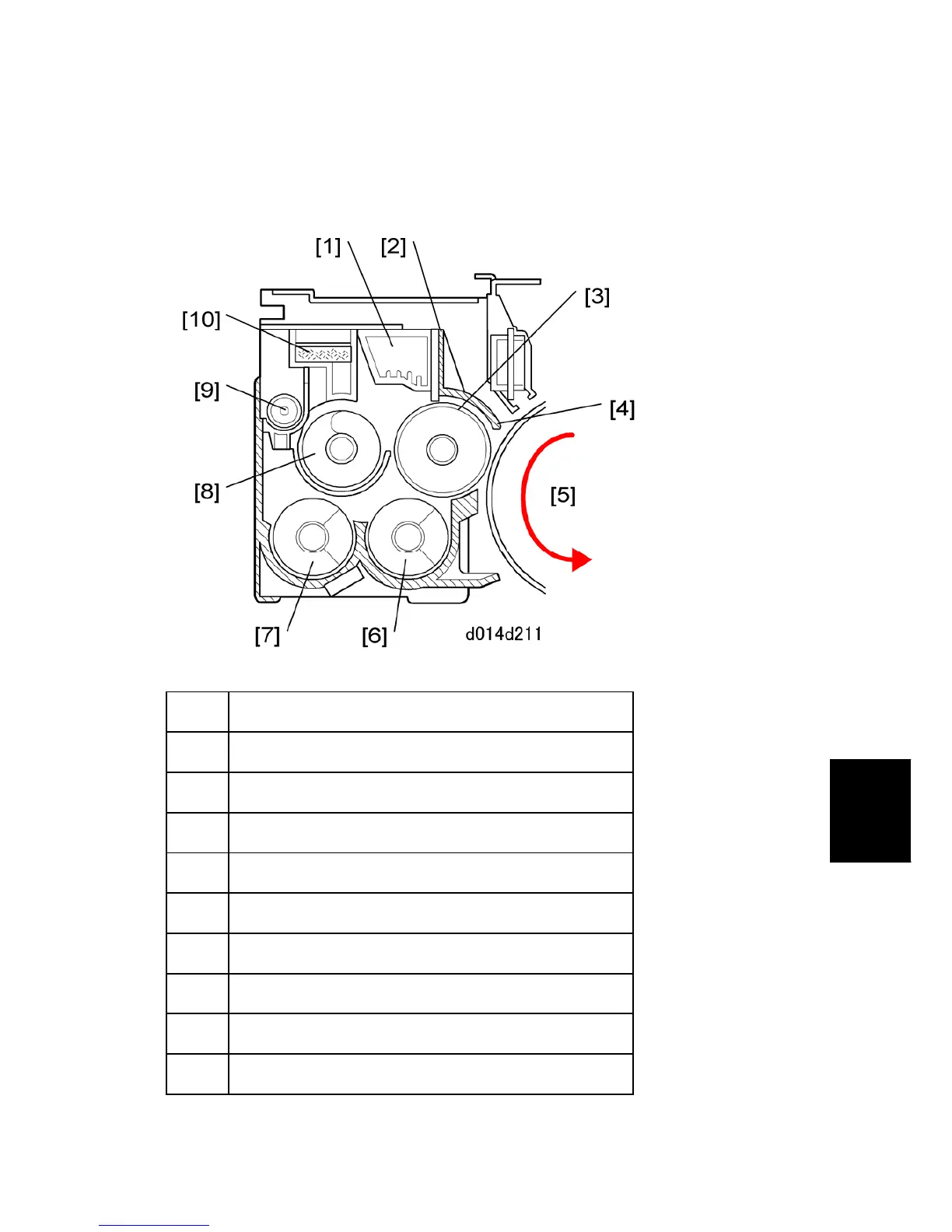

Overview
1. Heat Sink
2. Doctor Blade (t=2.0)
3. Development Roller
4. Entrance Seal
5. Drum (dia. 60)
6. Toner Collection Auger (dia. 25)
7. Development Auger (dia. 22)
8. Supply Auger (dia. 22)
9. Excess Toner Auger
10. Filter
