Output Jogger Unit (B703)
SM 1-91 D014/D015/D078/D079
Installation
1.12.2 INSTALLATION
The Output Jogger Unit B703 is installed only on the 2000/3000-Sheet Finisher
D373/D374.
Always switch the machine off and unplug the machine before doing any of the
following procedures
1. Turn the main machine switch off.
2. Disconnect the finisher from the main frame.

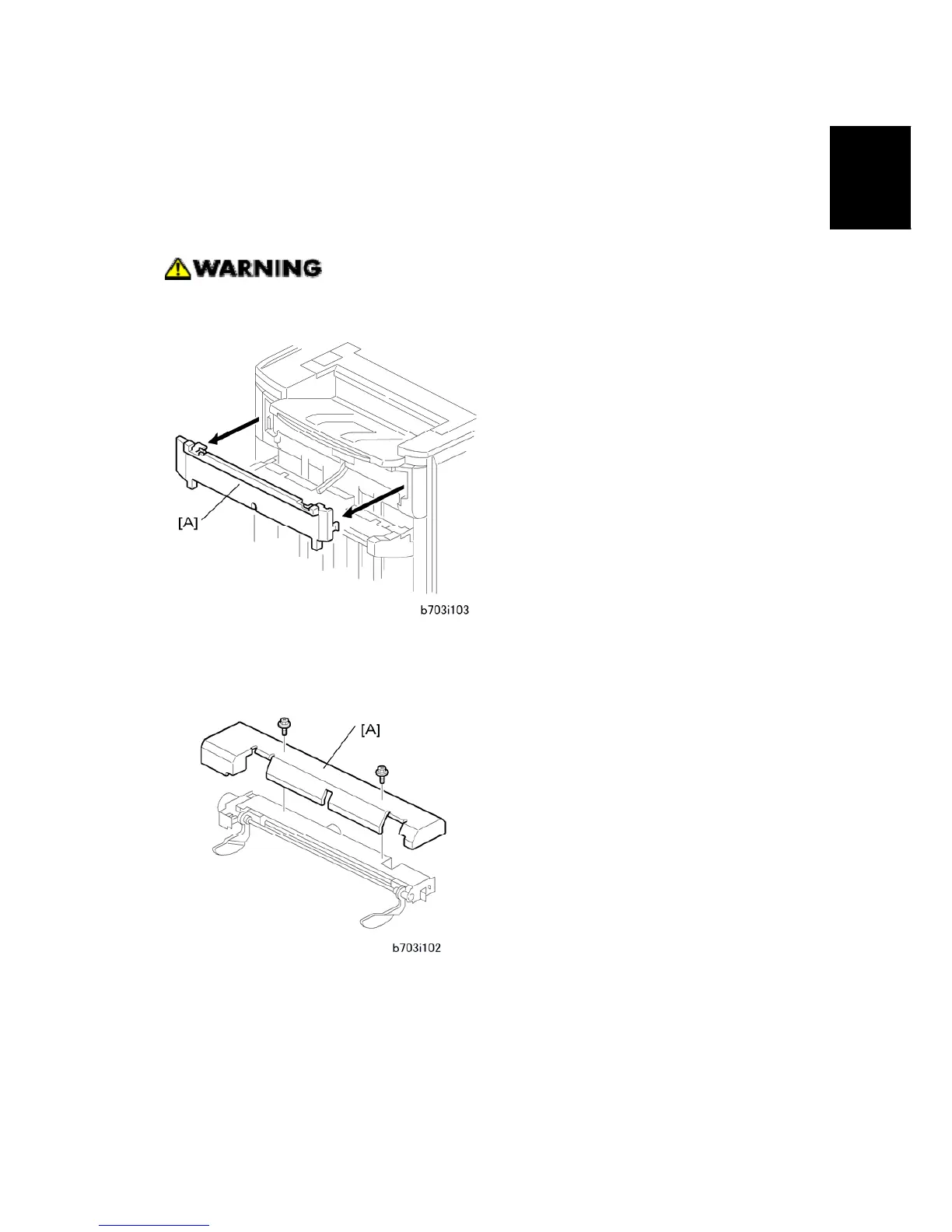

3. Use the flat head of a screwdriver to remove the left upper cover [A].
4. Remove the cover plate [A] ( x 2). Keep the screws.
To Next Page
