Output Jogger Unit (B703)
D014/D015/D078/D079 1-92 SM

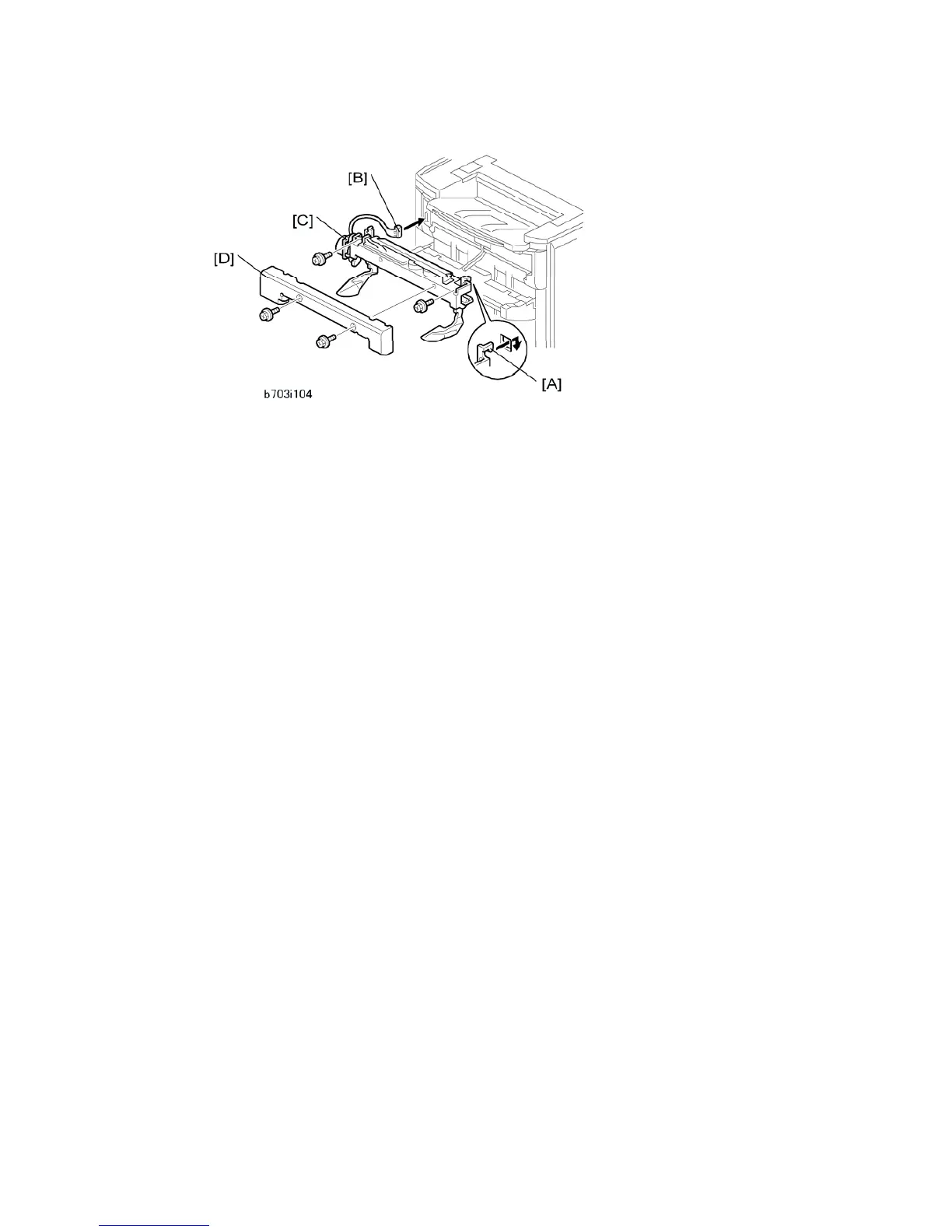

5. While holding the jogger unit with the connector on the left, put the hooks on the frame
of the jogger unit [A] into the holes in the left and right side of the finisher frame.
6. Connect connector [B] to the socket ( x 1).
7. Attach the jogger unit [C] to the finisher ( x 2).
8. Reattach the jogger unit cover [D] to the jogger unit ( x 2).
